XM-C9F3-0404D
XR-C9F3-0404D ROHS

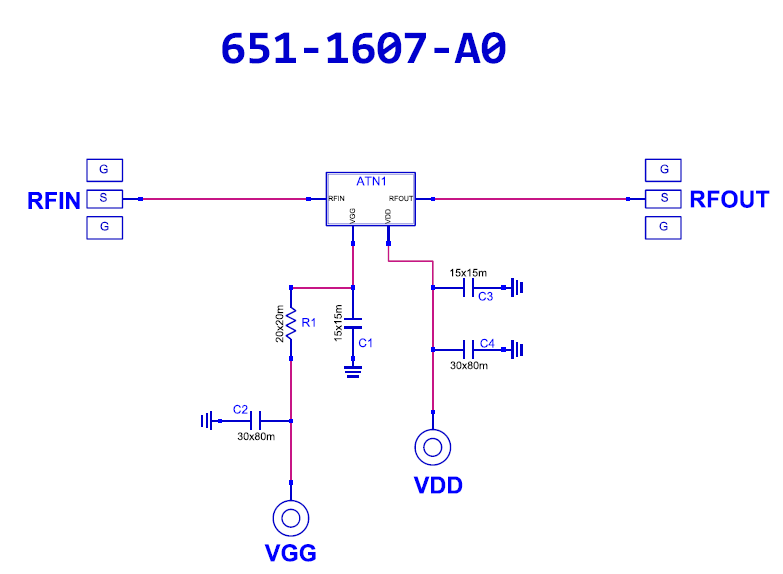

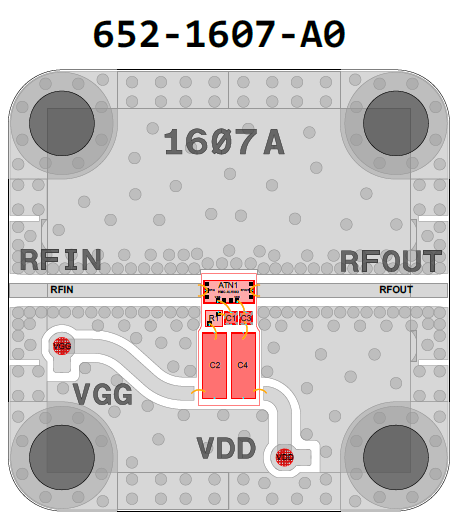

Amplifier, HMC-ALH382 [PCB: 1607]
Recommended Bias Controller: XM-C1E5-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC-ALH382

Low Freq

 N/A 57000 MHz

High Freq

 N/A 65000 MHz

Gain

 N/A 21 dB

NF

 N/A 3.8 dB

P1dB

 N/A 12 dBm

Voltage

 N/A 2.5 V

Current

 N/A 64 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -1V
2. Apply VDD = +2.5V
3. Adjust VGG more positive until IDD reaches 64mA
Note: VG1 ~ -0.2V, Do not exceed 0.0V
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -1V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-C9F3-0404D
