XM-C9A1-0404C-01
XR-C9A1-0404C-01 ROHS

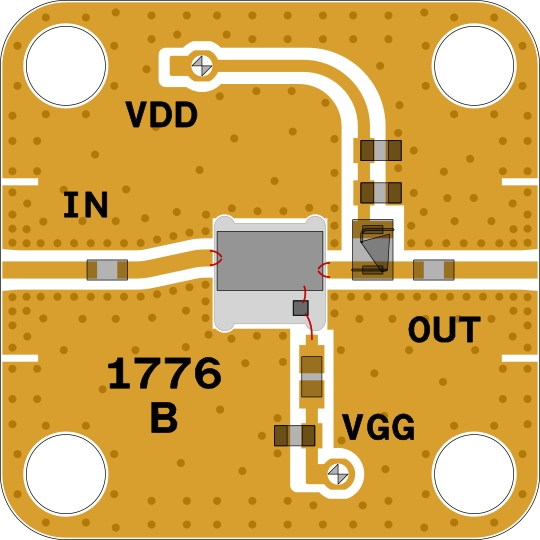

Amplifier, LTA-183M-D+ [PCB: 1776]
Connectorized Housing
Included Bias Controller: XM-C599-0404D

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A LTA-183M-D+

Low Freq

 N/A 50 MHz

High Freq

 N/A 18000 MHz

Gain

 N/A 20.4 dB

NF

 N/A 2 dB

P1dB

 N/A 23.2 dBm

IP3

 N/A 29.5 dBm

Voltage

 N/A 8 V

Current

 N/A 160 mA

Connector Series

 N/A SuperSMA

Bias Instruction

 N/A

Power-up Sequence
1. Set +VIN to [+9V to +12V]
2. Apply the RF input signal



Power-down Sequence
1. Remove the RF input signal
2. Set +VIN to 0V

Part Number

 N/A XR-C9A1-0404C-01
