XM-C8M6-0404D
XR-C8M6-0404D ROHS

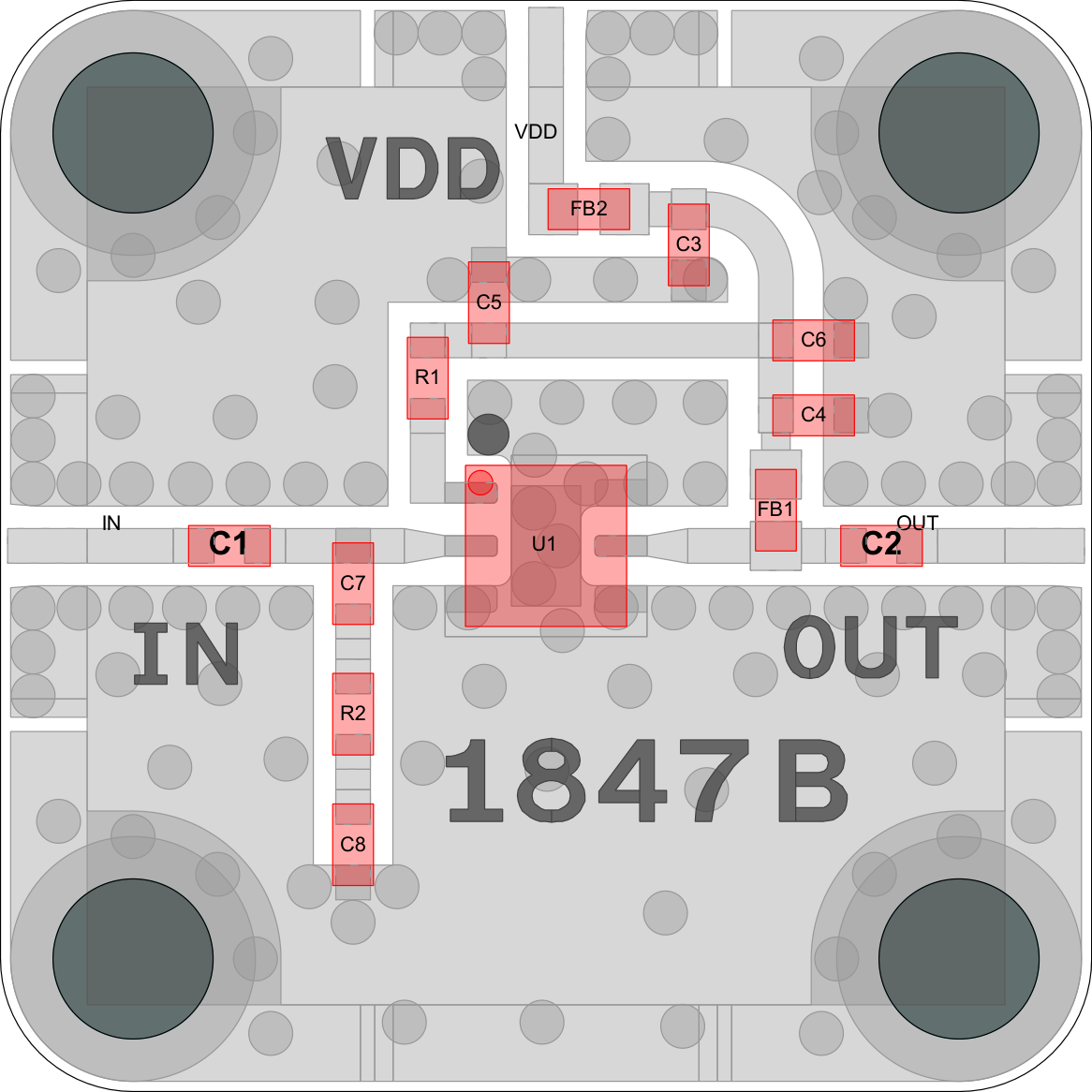

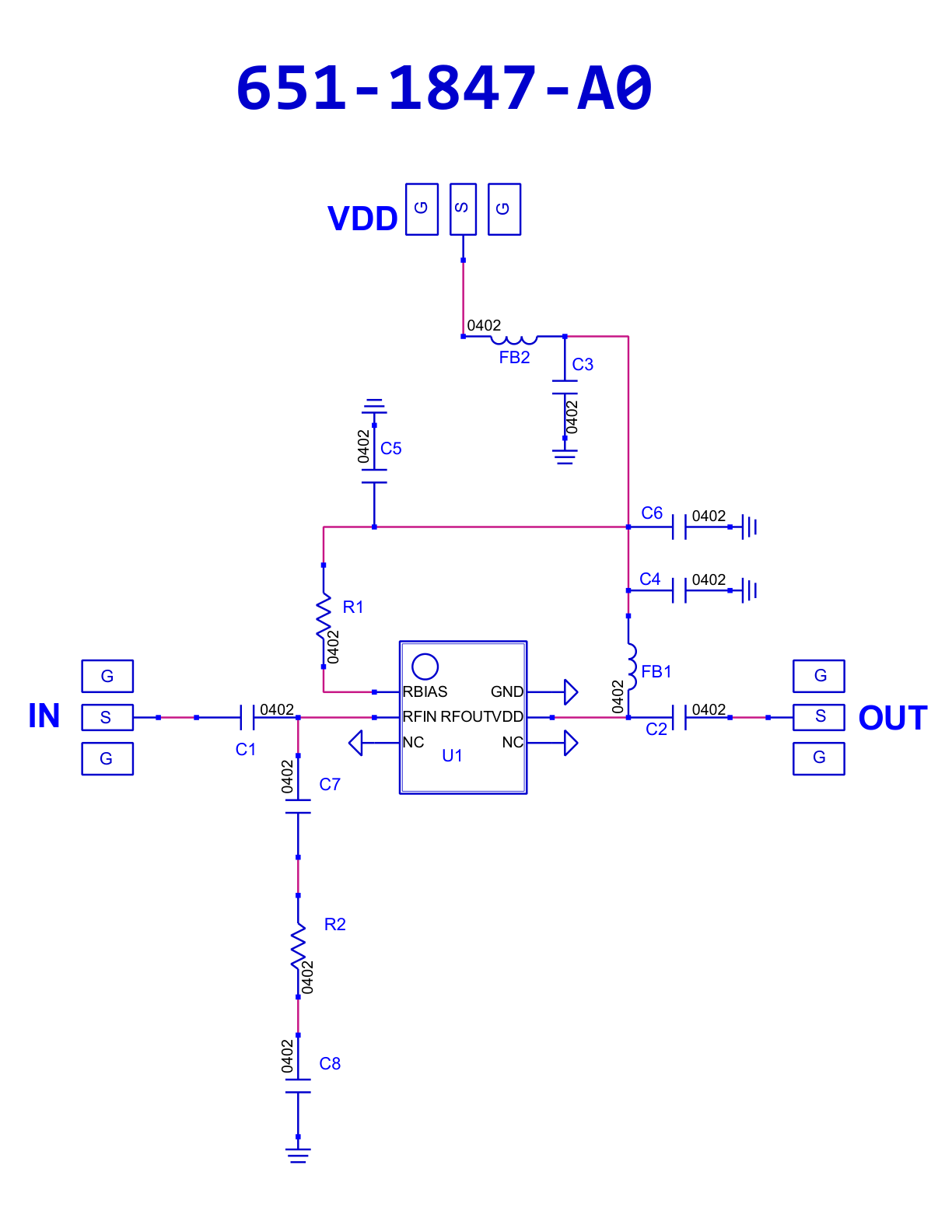

Amplifier, HMC8411LP2FE [PCB: 1847]
Recommended Bias Controller: XM-C9M7-0405D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC8411LP2FE

Low Freq

 N/A 50 MHz

High Freq

 N/A 10000 MHz

Gain

 N/A 15.5 dB

NF

 N/A 1.7 dB

P1dB

 N/A 20 dBm

IP3

 N/A 33.5 dBm

Voltage

 N/A 5 V

Current

 N/A 55 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
Verify IDD ~55mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-C8M6-0404D
