XM-C8B1-0404D
XR-C8B1-0404D ROHS

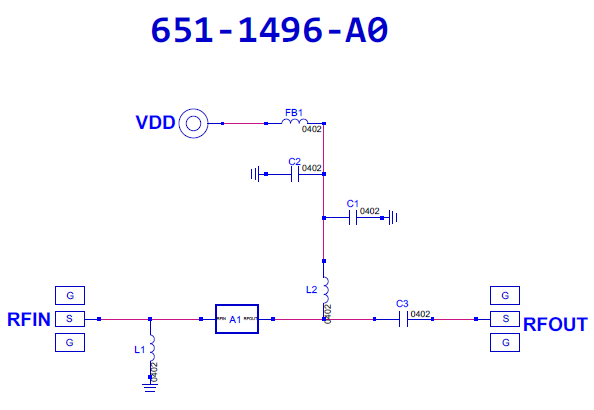

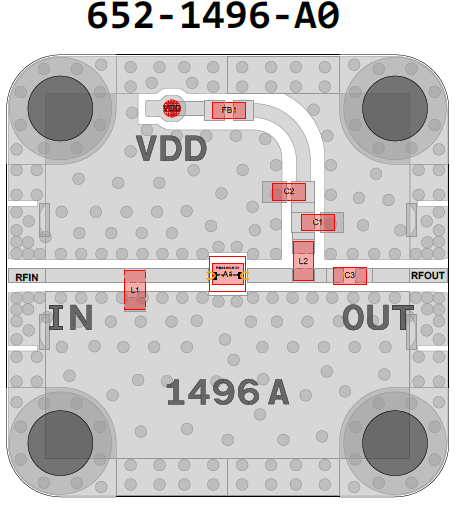

Amplifier, PMA3-83LN-DG+ [PCB: 1496]
Product Page |
N/A Mini-Circuits |
Spec Sheet |
N/A PMA3-83LN-DG+ |
Low Freq |
N/A 500 MHz |
High Freq |
N/A 8000 MHz |
Gain |
N/A 21.9 dB |
NF |
N/A 1.2 dB |
P1dB |
N/A 21.2 dBm |
IP3 |
N/A 35 dBm |
Voltage |
N/A 6 V |
Current |
N/A 77 mA |
ALL_ASSET |
N/A 1341P |
|
N/A |
Part Number |
N/A XR-C8B1-0404D |
