XM-C887-0404D
XR-C887-0404D ROHS

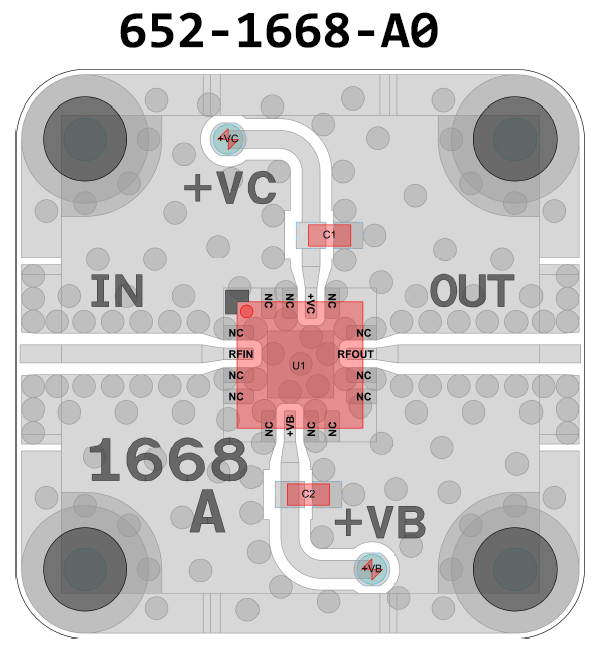

Amplifier, APM-6849SM [PCB: 1668]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A Marki Microwave

Spec Sheet

 N/A APM-6849SM

Low Freq

 N/A 2000 MHz

High Freq

 N/A 30000 MHz

Gain

 N/A 11 dB

NF

 N/A 5 dB

P1dB

 N/A 20 dBm

IP3

 N/A 11 dBm

Voltage

 N/A 5 V

Current

 N/A 21 mA

ALL_ASSET

 N/A 1361P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VC = +5.0V
2. Apply VB = +5.0V
3. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VDD to 0V
3. Adjust VGG to 0V

RF power can be applied at any time.

Part Number

 N/A XR-C887-0404D
