XM-C7R2-0404D
XR-C7R2-0404D ROHS

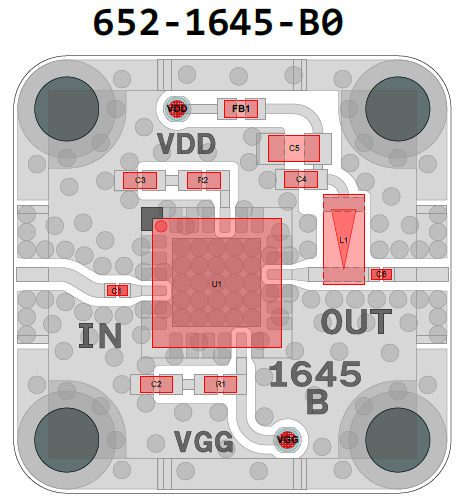

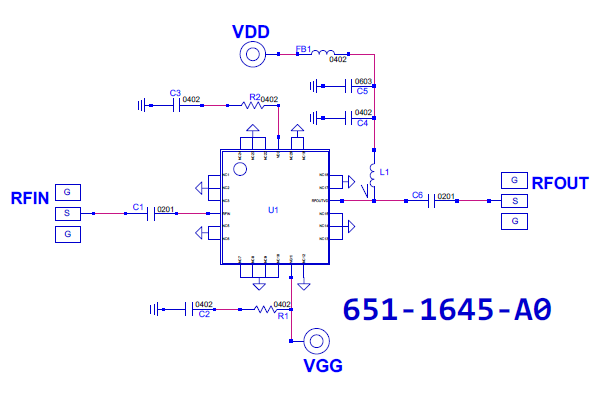

Amplifier, ADM-0026-5929SM [PCB: 1645]
Recommended Bias Controller: XM-C7R3-0404D-SP

Configurations

Product Page

 N/A Marki Microwave

Spec Sheet

 N/A ADM-0026-5929SM

Low Freq

 N/A 50 MHz

High Freq

 N/A 26500 MHz

Gain

 N/A 13 dB

NF

 N/A 5.5 dB

P1dB

 N/A 15 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 9 V

Current

 N/A 275 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +7V
Verify IDD ~225mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Note: VGG=0V (pull down to GND on RF board, no SP connection needed from bias ctl)

Part Number

 N/A XR-C7R2-0404D
