XM-C7E4-0404D
XR-C7E4-0404D ROHS

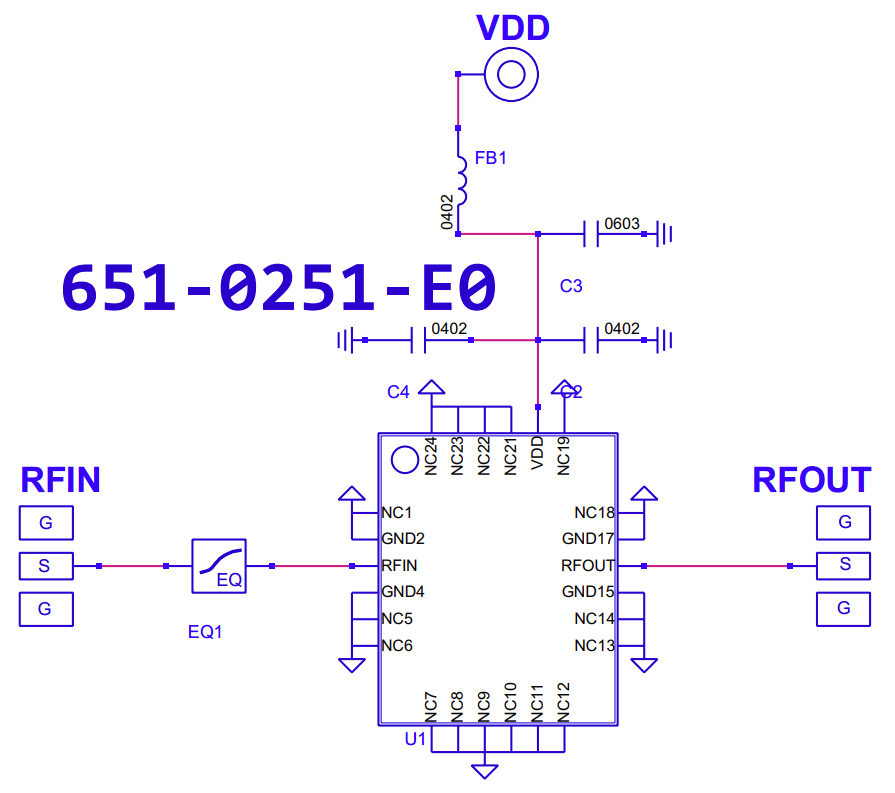

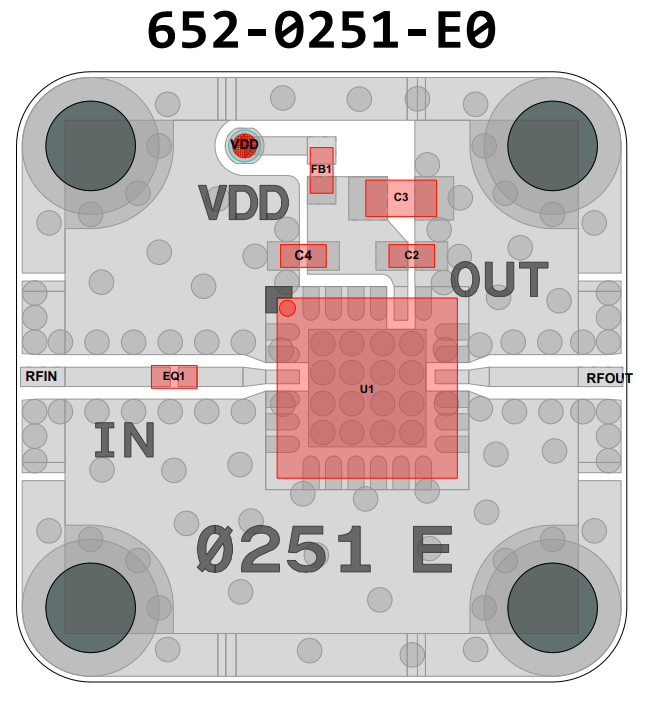

Amplifier, CMD308P4 [PCB: 0251]
Recommended Bias Controller: XM-B5G7-0404D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD308P4

Low Freq

 N/A 2000 MHz

High Freq

 N/A 6000 MHz

Gain

 N/A 31 dB

NF

 N/A 1.6 dB

P1dB

 N/A 12 dBm

IP3

 N/A 22.5 dBm

Voltage

 N/A 3 V

Current

 N/A 45 mA

ALL_ASSET

 N/A 1061P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +4.0V
2. Apply RF Signal
Note:
Verify IDD ~45mA

RF power can be applied at any time

Power-down Sequence
1. Remove RF Signal
2. Adjust +VIN to 0V

Part Number

 N/A XR-C7E4-0404D
