XM-C7E2-0404C
XR-C7E2-0404C ROHS

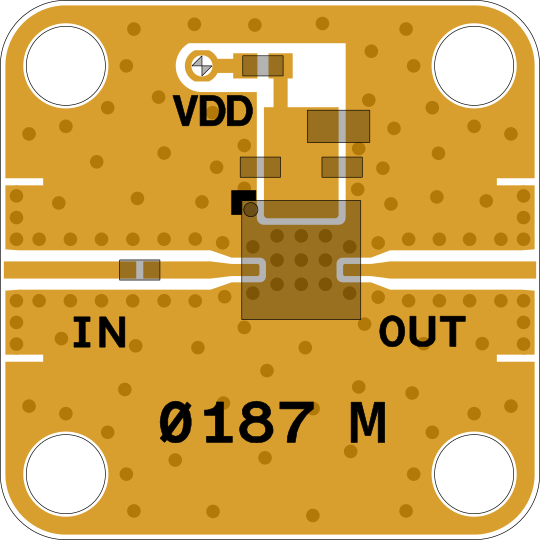

Amplifier, CMD305P3 [PCB: 0187]

Configurations

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD305P3

Low Freq

 N/A 6000 MHz

High Freq

 N/A 14000 MHz

Gain

 N/A 18 dB

NF

 N/A 4.5 dB

P1dB

 N/A 19 dBm

IP3

 N/A 31.5 dBm

Voltage

 N/A 3 V

Current

 N/A 100 mA

ALL_ASSET

 N/A 1007P 5183M

Connector Series

 N/A SuperSMA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 5.0V
Verify IDD ~100mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-C7E2-0404C
