XM-C799-0604D
XR-C799-0604D ROHS

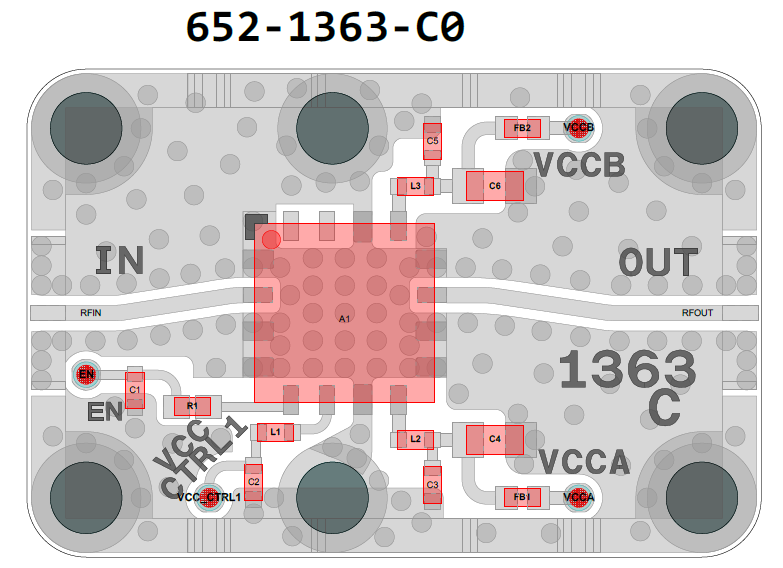

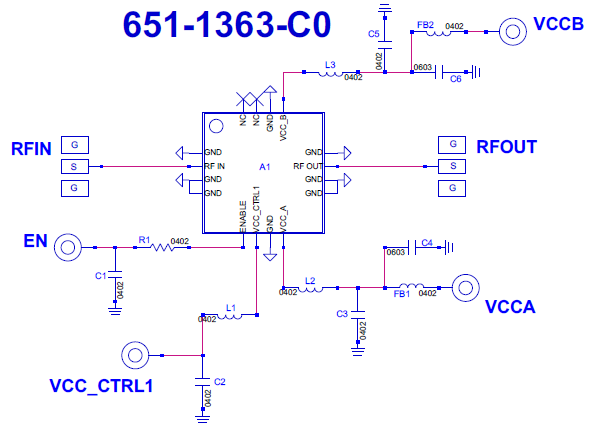

Amplifier, QPA9842 [PCB: 1363]
Recommended Bias Controller: XM-A494-0604D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A QPA9842

Low Freq

 N/A 2700 MHz

High Freq

 N/A 3800 MHz

Gain

 N/A 18.7 dB

NF

 N/A 2.3 dB

P1dB

 N/A 25 dBm

IP3

 N/A 38.2 dBm

Voltage

 N/A 5 V

Current

 N/A 284 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. EN = OFF
2. Set VCCA=VCCB = +5V (@~284mA)
3. Set VCCctl = +5V (@3mA)
4. EN = ON (+1.8V)
5. Apply RF power

Power-down Sequence
1. Turn off RF power
2. EN = OFF
3. Set, VCCA, VCCB, VCCctl = 0V

Part Number

 N/A XR-C799-0604D
