XM-C792-0304D
XR-C792-0304D ROHS

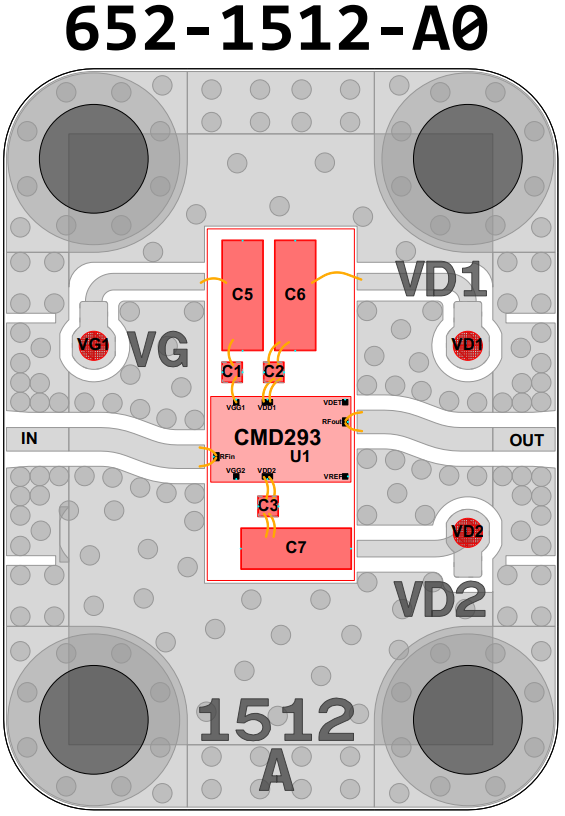

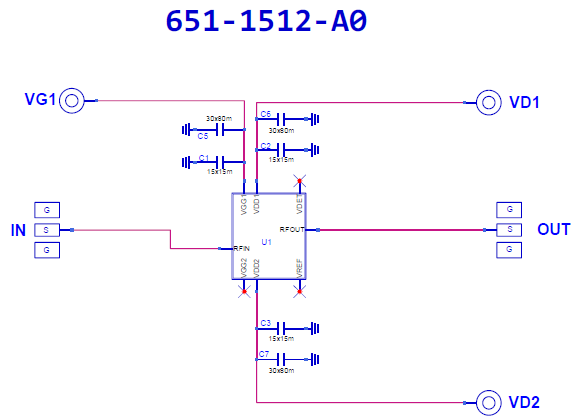

Amplifier, CMD293 [PCB: 1512]
Recommended Bias Controller: XM-C9N2-0304D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD293

Low Freq

 N/A 20000 MHz

High Freq

 N/A 45000 MHz

Gain

 N/A 20 dB

NF

 N/A 6 dB

P1dB

 N/A 26 dBm

IP3

 N/A 31.5 dBm

Voltage

 N/A 3 V

Current

 N/A 480 mA

ALL_ASSET

 N/A 1346P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -2.0V
2. Apply VDD = +5.0V
3. Adjust VGG more positive until IDQ reaches 480mA
Note: VG1 ~ -0.45V, Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VDD to 0V
3. Adjust VGG to 0V

Part Number

 N/A XR-C792-0304D
