XM-C787-0404D
XR-C787-0404D ROHS

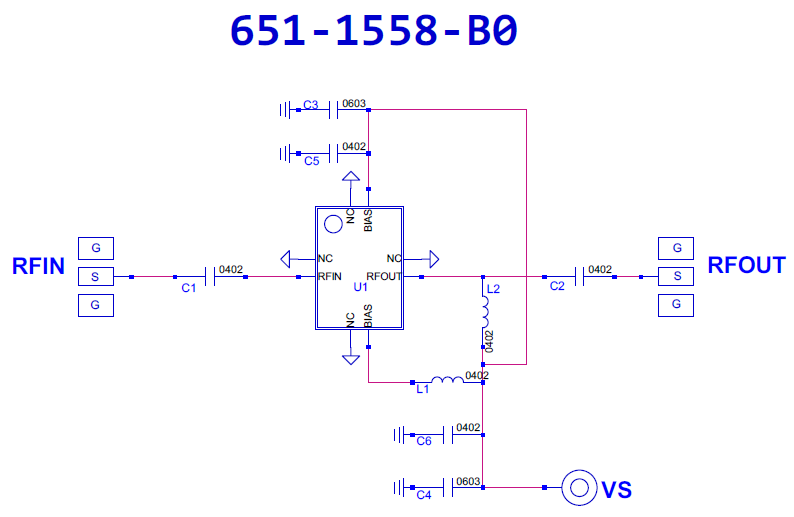

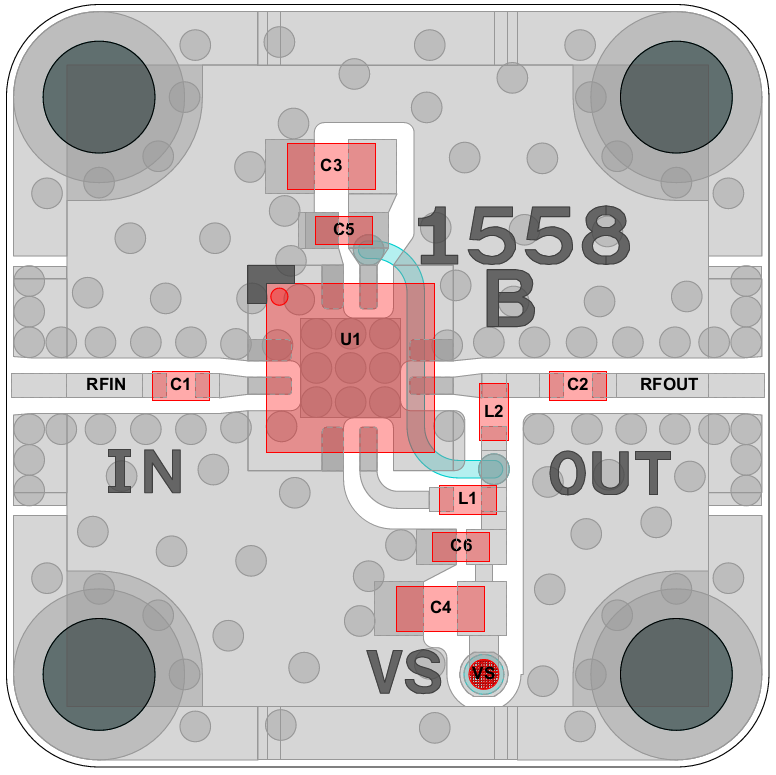

Amplifier, PMA-545G2+ [PCB: 1558]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A PMA-545G2+

Low Freq

 N/A 1100 MHz

High Freq

 N/A 1600 MHz

Gain

 N/A 30 dB

NF

 N/A 1 dB

P1dB

 N/A 22 dBm

IP3

 N/A 34 dBm

Voltage

 N/A 5 V

Current

 N/A 158 mA

ALL_ASSET

 N/A 1352P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 5.0V
Verify IDD ~158mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-C787-0404D
