XM-C785-0404D
XR-C785-0404D ROHS

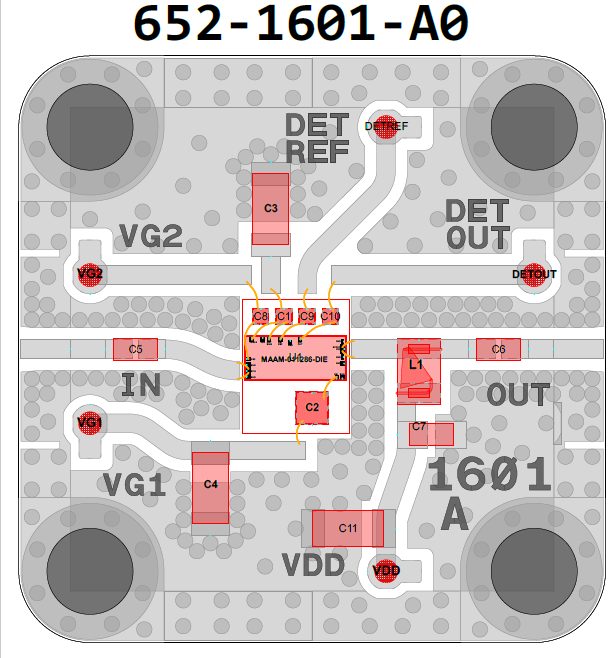

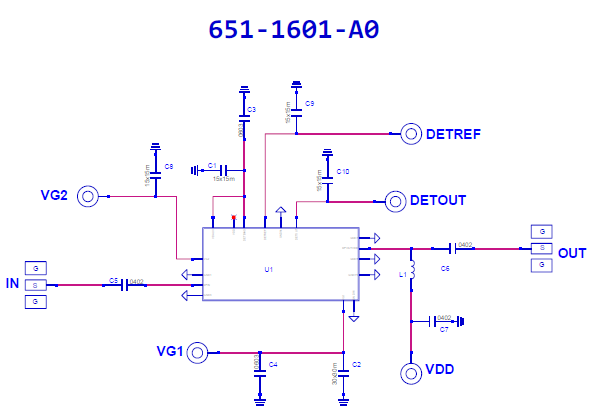

Amplifier, MAAM-011286-DIE [PCB: 1601]
Recommended Bias Controller: XM-C8M9-0404D-SP

Product Page

 N/A Macom

Spec Sheet

 N/A MAAM-011286-DIE

Low Freq

 N/A 0.03 MHz

High Freq

 N/A 44000 MHz

Gain

 N/A 16 dB

NF

 N/A 5.3 dB

P1dB

 N/A 22 dBm

IP3

 N/A 30 dBm

Voltage

 N/A 3 V

Current

 N/A 200 mA

ALL_ASSET

 N/A 1356P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -4.0V
2. Apply VDD = +7.0V
3. Adjust VGG more positive until IDQ reaches 200mA
Note: VG1 ~ -2.5V, Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -4.0V
3. Adjust VDD to 0V

Note 1: VG1 must be able to source at least 10 mA.
Note 2: VG2 can be used for gain control in all bias configurations. If gain control is not required, VG2 should be left open-circuited.

Part Number

 N/A XR-C785-0404D
