XM-C6L3-0404D
XR-C6L3-0404D ROHS

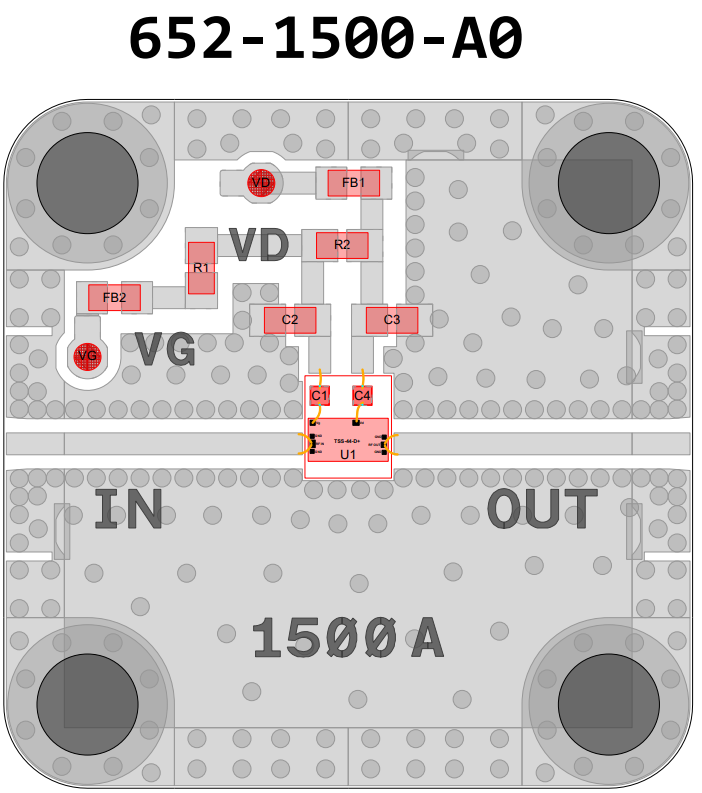

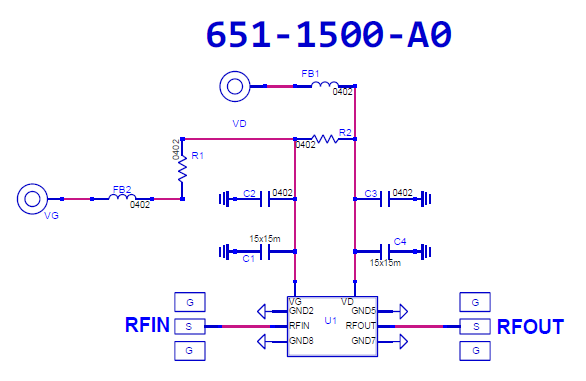

Amplifier, TSS-44-DG+ [PCB: 1500]

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A TSS-44-DG+

Low Freq

 N/A 22000 MHz

High Freq

 N/A 43500 MHz

Gain

 N/A 17.6 dB

NF

 N/A 3.2 dB

P1dB

 N/A 4.1 dBm

IP3

 N/A 12.7 dBm

Voltage

 N/A 4 V

Current

 N/A 22 mA

ALL_ASSET

 N/A 1344P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VD = 4.0V
2. Apply VG = 4.0V
Verify IDD ~22mA
3. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Set VG to 0V
3. Set VD to 0V

Part Number

 N/A XR-C6L3-0404D
