XM-C458-0404D
XR-C458-0404D ROHS

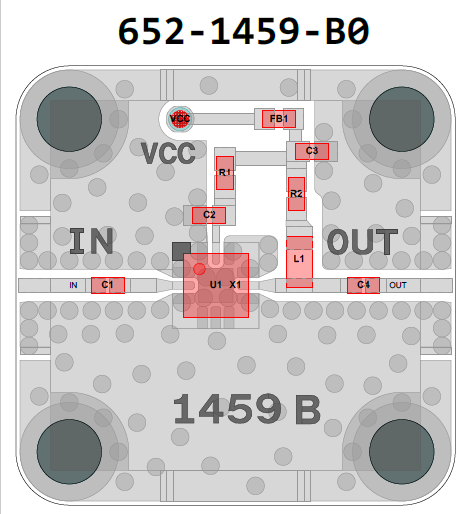

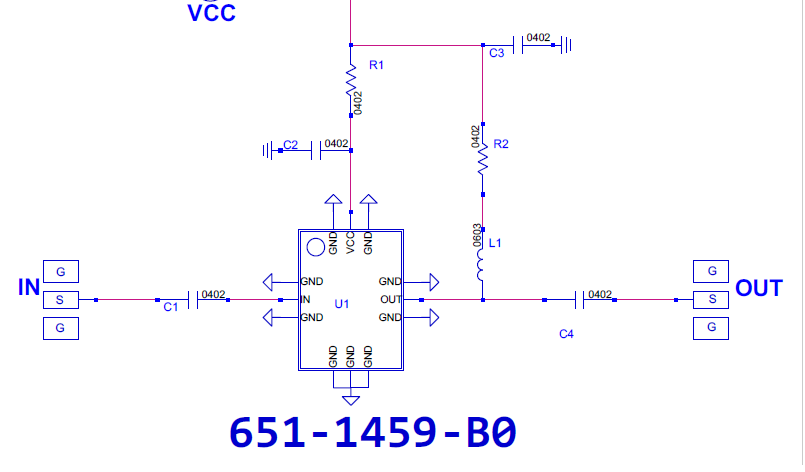

Amplifier, HMMC-5628-BLK [PCB: 1459]
Recommended Bias Controller: XM-A2J9-0404D-SP

Configurations

Product Page

 N/A Keysight

Spec Sheet

 N/A HMMC-5628-BLK

Low Freq

 N/A 0 MHz

High Freq

 N/A 26500 MHz

Gain

 N/A 17 dB

Voltage

 N/A 3.3 V

Current

 N/A 30 mA

ALL_ASSET

 N/A 1337P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 3.3V
Verify IDD ~51mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-C458-0404D
