XM-C444-0505D
XR-C444-0505D ROHS

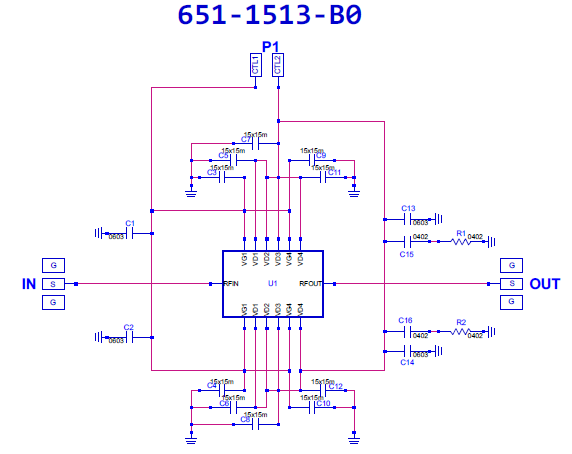

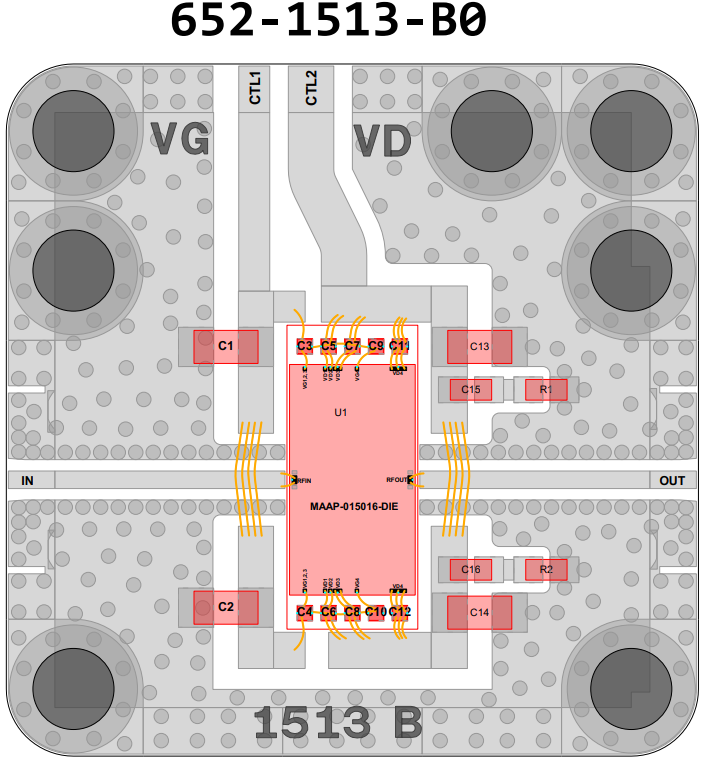

Amplifier, MAAP-015016-DIE [PCB: 1513]

Product Page

 N/A Macom

Spec Sheet

 N/A MAAP-015016-DIE

Low Freq

 N/A 32000 MHz

High Freq

 N/A 38000 MHz

Gain

 N/A 18 dB

Voltage

 N/A 6 V

Current

 N/A 2500 mA

ALL_ASSET

 N/A 1347P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -1.5V
2. Apply VDD = +6.0V (Limit to 4500mA)
3. Adjust VGG more positive until IDQ reaches 2500mA
Note: VG1 ~ -0.9V, Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -1.5V
3. Adjust VDD to 0V

Part Number

 N/A XR-C444-0505D
