XM-C416-0404D
XR-C416-0404D ROHS

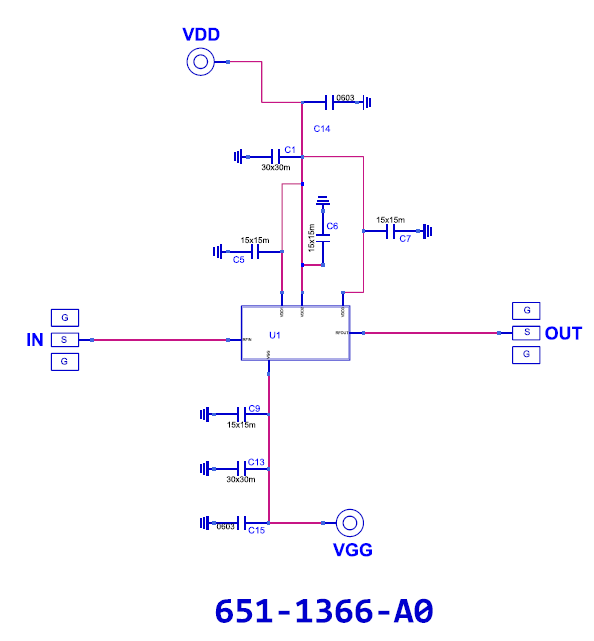

Amplifier, HMC1082 [PCB: 1366]
Recommended Bias Controller: XM-C417-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC1082

Low Freq

 N/A 5500 MHz

High Freq

 N/A 18000 MHz

Gain

 N/A 24 dB

P1dB

 N/A 25.5 dBm

IP3

 N/A 36 dBm

Voltage

 N/A 5 V

Current

 N/A 220 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -2V
2. Apply VDD = +5V
3. Adjust VGG more positive until IDQ reaches 220mA
Note: Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -2V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-C416-0404D
