XM-C412-0404D
XR-C412-0404D ROHS

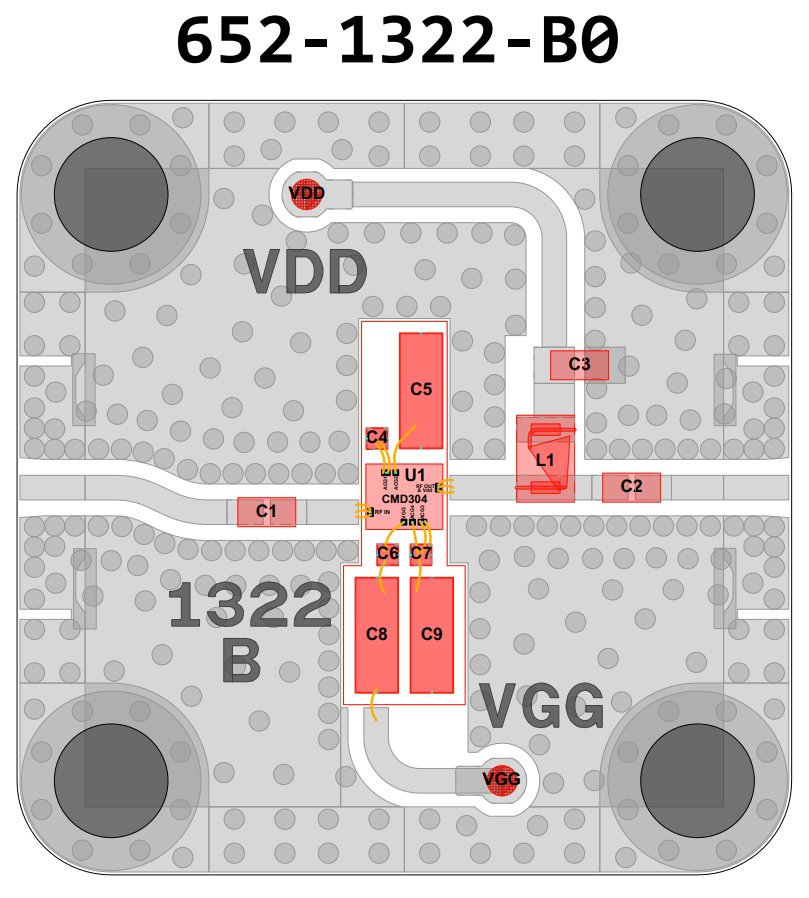

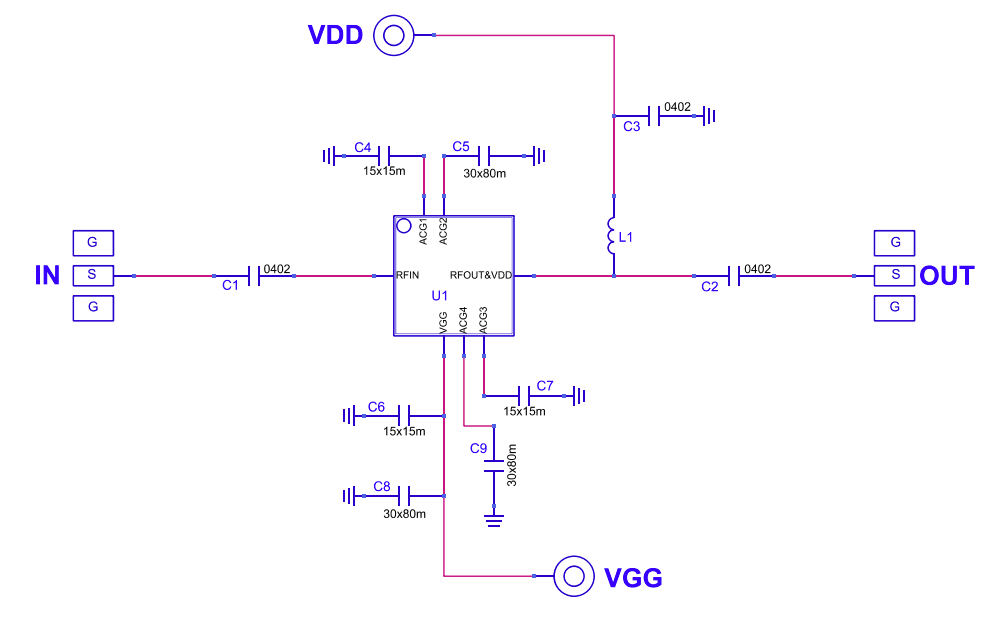

Amplifier, CMD304 [PCB: 1322]
Recommended Bias Controller: XM-C413-0404D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD304

Low Freq

 N/A 50 MHz

High Freq

 N/A 67000 MHz

Gain

 N/A 9.5 dB

NF

 N/A 3 dB

P1dB

 N/A 11 dBm

IP3

 N/A 21 dBm

Voltage

 N/A 2 V

Current

 N/A 40 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -2V
2. Apply VDD = +3V
3. Adjust VGG more positive until drain current reaches 40mA
Note: VG1 ~ -0.4V, Do not exceed 0.0V
4. Apply the RF input signal

Note: RF power can be applied at any time.

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VDD to 0V
3. Adjust VGG to 0V

Part Number

 N/A XR-C412-0404D
