XM-C368-0404D
XR-C368-0404D ROHS

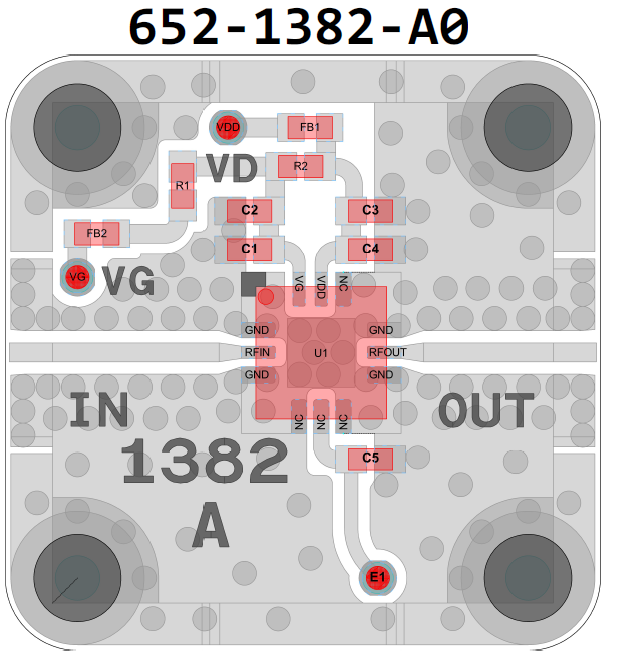

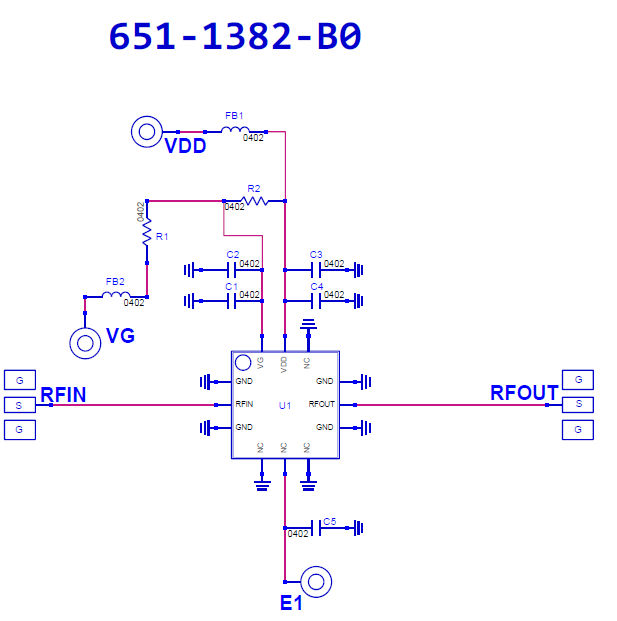

Amplifier, TSS-44+ [PCB: 1382]
Recommended Bias Controller: XM-B9K4-0404D-SP

Configurations

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A TSS-44+

Low Freq

 N/A 22000 MHz

High Freq

 N/A 43500 MHz

Gain

 N/A 17.6 dB

NF

 N/A 3.2 dB

P1dB

 N/A 4.1 dBm

IP3

 N/A 12.7 dBm

Voltage

 N/A 4 V

Current

 N/A 22 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +4V
2. Apply VG = +4V @8mA (0V @2mA for OFF))
Verify IDD ~22mA
3. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. VG = OFF
3. Turn off VDD

Note: E1=N/C(must be float per mfg suggestion).

Part Number

 N/A XR-C368-0404D
