XM-C2U8-0604D
XR-C2U8-0604D ROHS

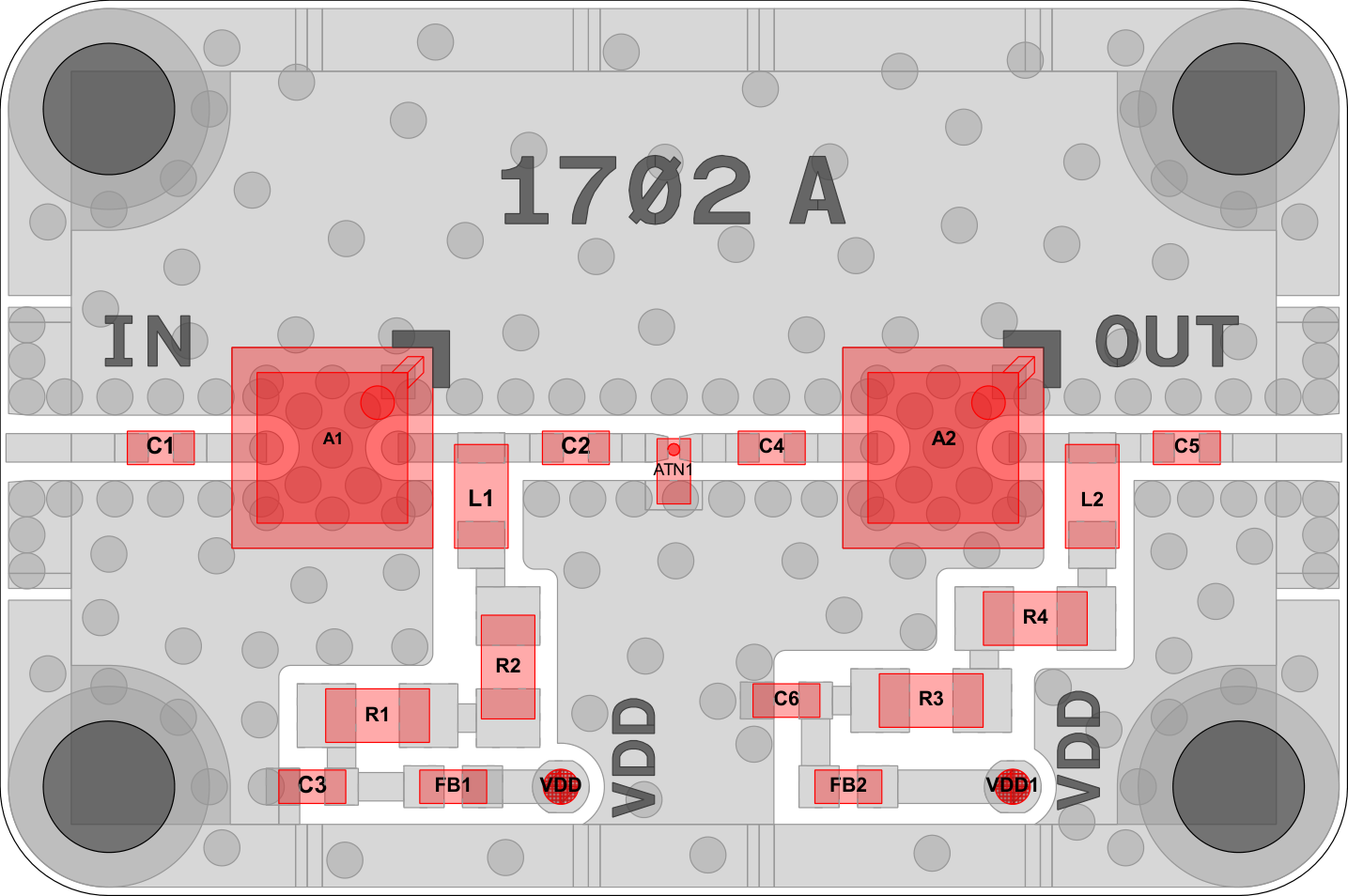

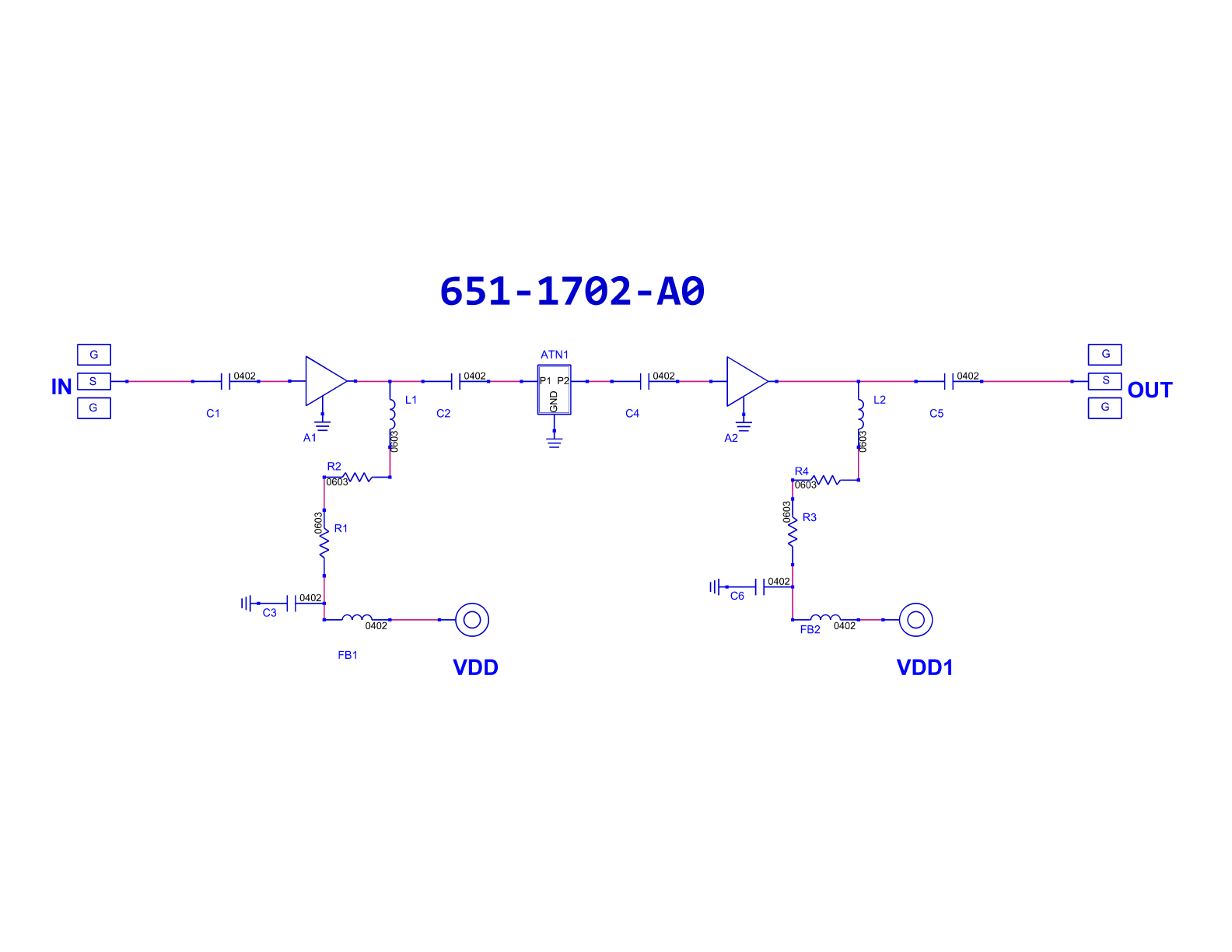

Amplifier, NBB-402-T1 [PCB: 1702]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A NBB-402-T1

Low Freq

 N/A 50 MHz

High Freq

 N/A 8000 MHz

Gain

 N/A 15.5 dB

NF

 N/A 4.3 dB

P1dB

 N/A 15.4 dBm

IP3

 N/A 28.1 dBm

Voltage

 N/A 3.8 V

Current

 N/A 70 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
Verify total I =47*2= 94mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-C2U8-0604D
