XM-B997-0506D
XR-B997-0506D ROHS

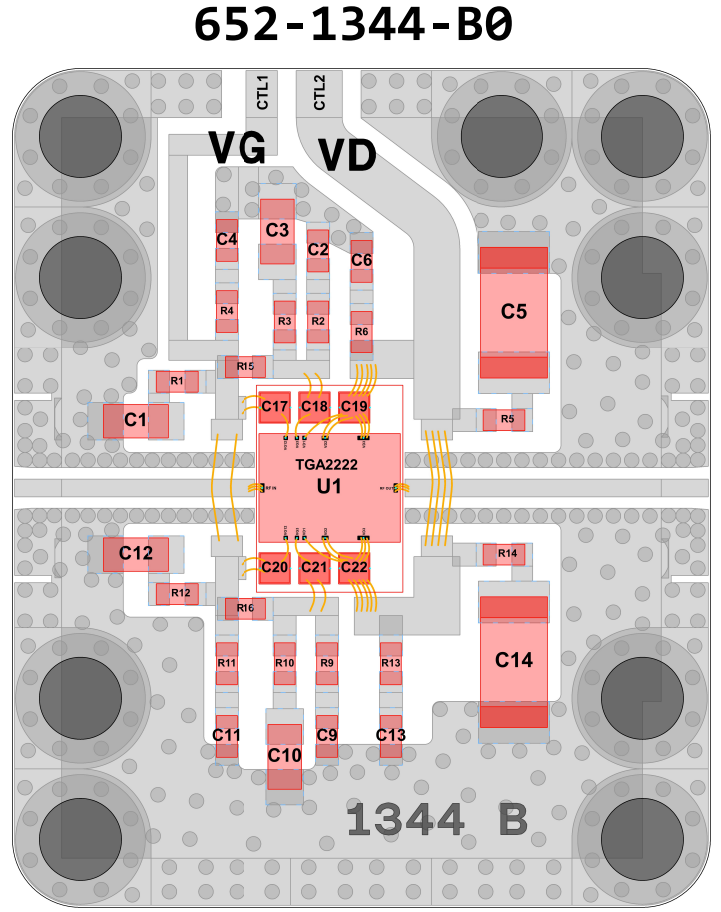

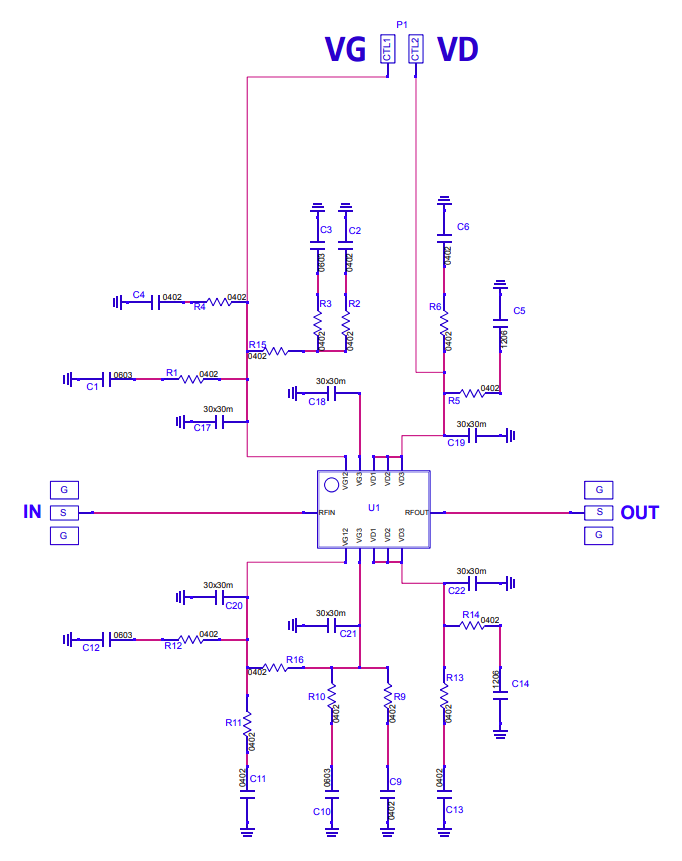

Amplifier, TGA2222 [PCB: 1344]
Recommended Bias Controller: XM-C117-0505D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A TGA2222

Low Freq

 N/A 32000 MHz

High Freq

 N/A 38000 MHz

Gain

 N/A 25 dB

Voltage

 N/A 24 V

Current

 N/A 640 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -4.0V
2. Apply VDD = +24V
4. Adjust VG more positive until IDQ reaches 640mA
Note: VG1 ~ -2.2V, Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -4.0V
4. Adjust VDD to 0V
5. Adjust VG to 0V

Part Number

 N/A XR-B997-0506D
