XM-B8U8-0404D
XR-B8U8-0404D ROHS

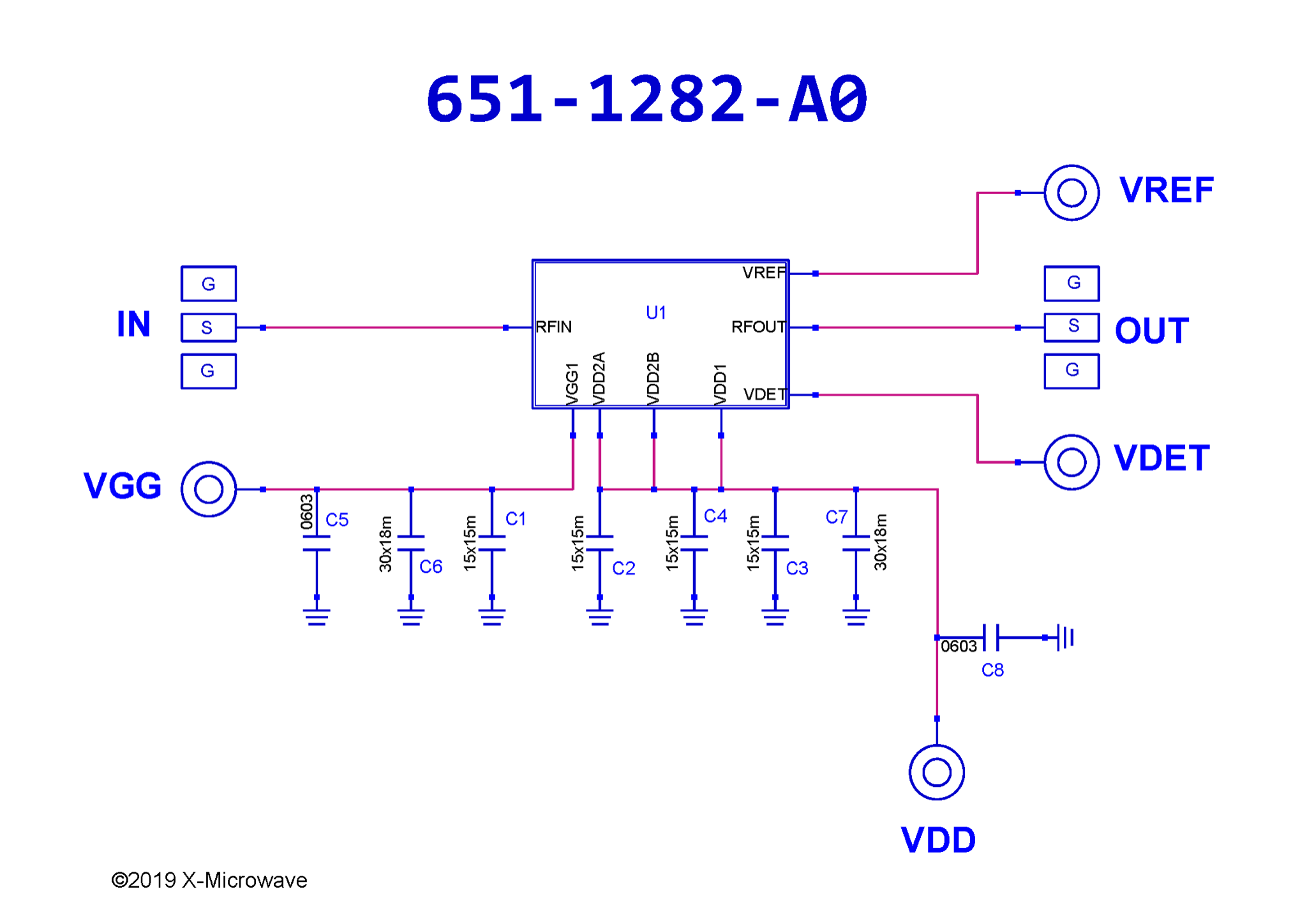

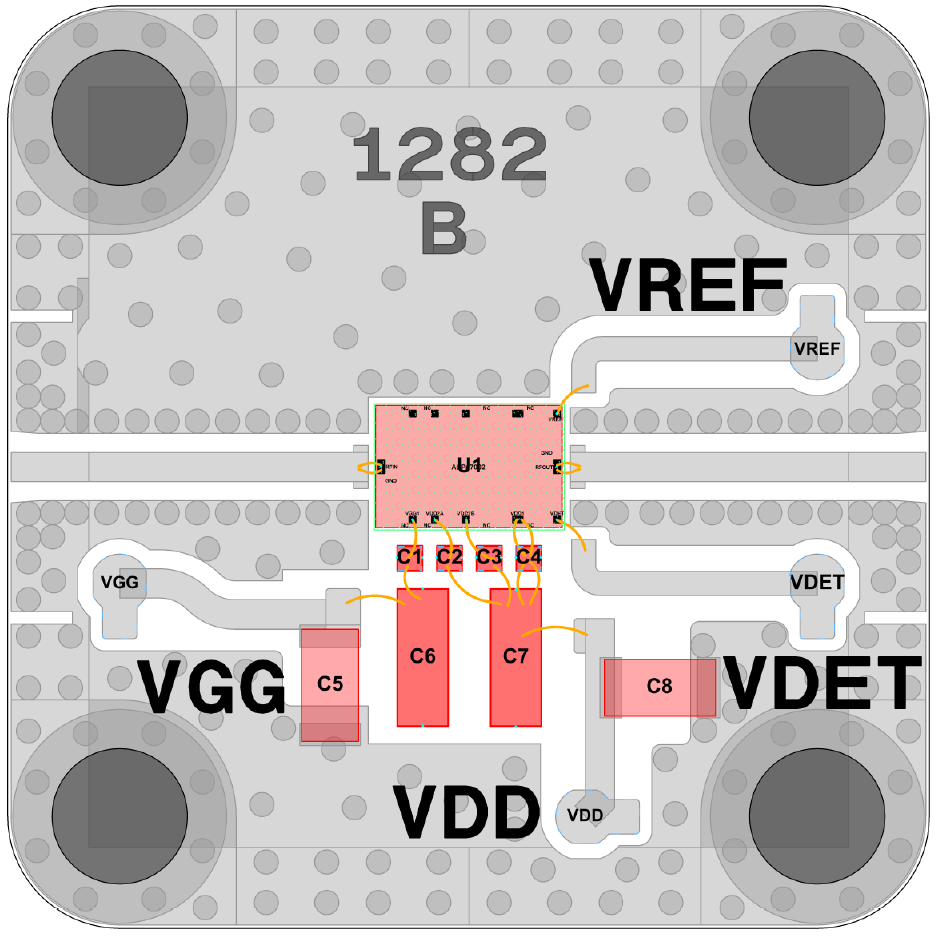

Amplifier, ADPA7002CHIP [PCB: 1282]
Recommended Bias Controller: XM-B8U9-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A ADPA7002CHIP

Low Freq

 N/A 20000 MHz

High Freq

 N/A 44000 MHz

Gain

 N/A 15 dB

NF

 N/A 6 dB

P1dB

 N/A 28 dBm

IP3

 N/A 40 dBm

Voltage

 N/A 5 V

Current

 N/A 600 mA

ALL_ASSET

 N/A 1314P 1315M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -1.5V
2. Apply VDD = +5.0V
3. Adjust VGG more positive until IDQ reaches 600mA
Note: VG1 ~ -0.73V, Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -1.5V
3. Adjust VDD to 0V

Part Number

 N/A XR-B8U8-0404D
