XM-B8U6-0404D
XR-B8U6-0404D ROHS

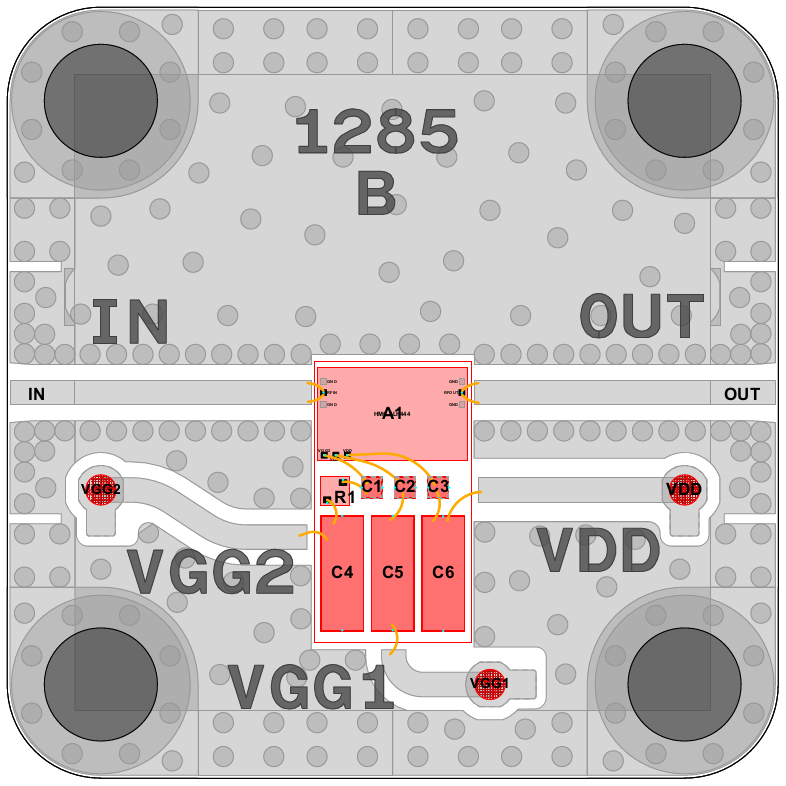

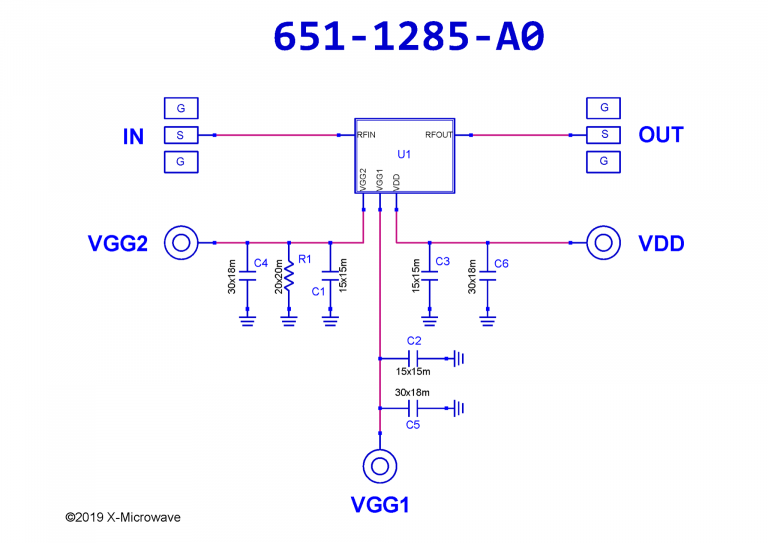

Amplifier, HMC-ALH444-DIE [PCB: 1285]
Recommended Bias Controller: XM-B8U7-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC-ALH444-DIE

Low Freq

 N/A 1000 MHz

High Freq

 N/A 12000 MHz

Gain

 N/A 17 dB

NF

 N/A 1.75 dB

P1dB

 N/A 19 dBm

IP3

 N/A 28 dBm

Voltage

 N/A 5 V

Current

 N/A 55 mA

ALL_ASSET

 N/A 1316P 1317M 1318M

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -1.0V
2. Apply VDD = 5.0V
3. Apply VG2 = +1.5V
4. Adjust VG1 more positive until IDQ reaches 55mA
Note: VG1 ~ -0.5V, Do not exceed 0.3V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -1.0V
3. Adjust VG2 to 0V
4. Adjust VDD to 0V
5. Adjust VG1 to 0V

Part Number

 N/A XR-B8U6-0404D
