XM-B8T3-0404D
XR-B8T3-0404D ROHS

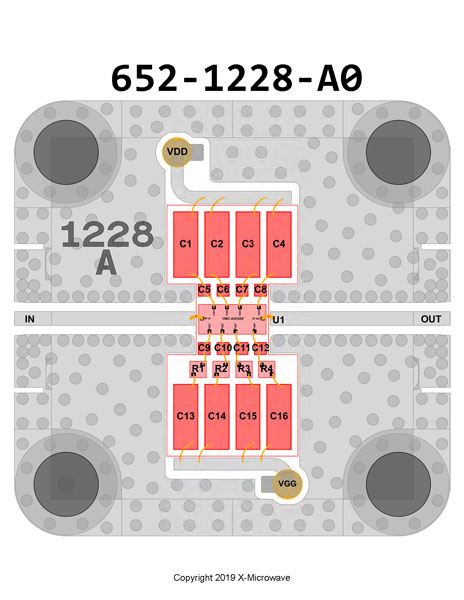

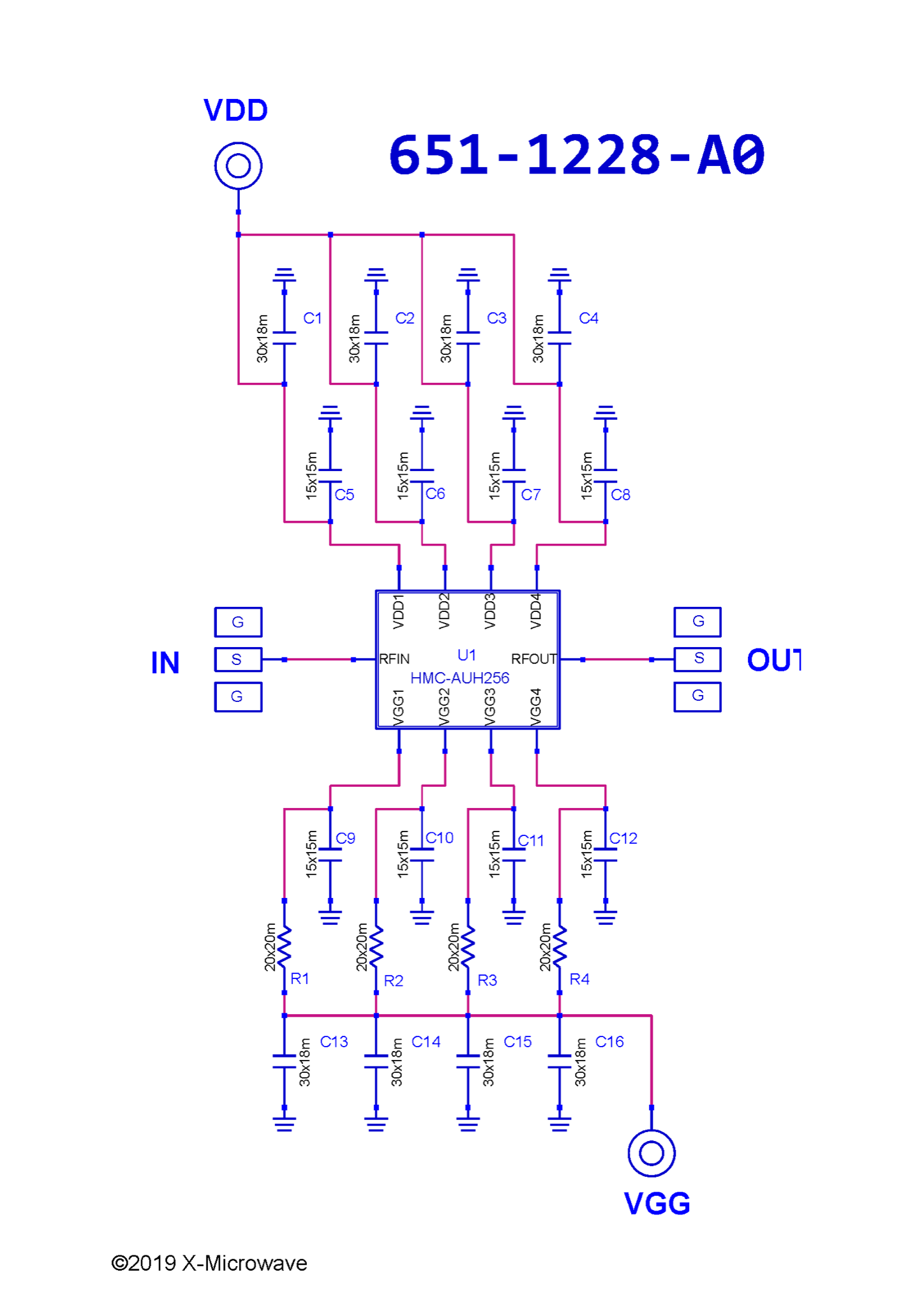

Amplifier, HMC-AUH256-SX [PCB: 1228]
Recommended Bias Controller: XM-B8T5-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC-AUH256-SX

Low Freq

 N/A 17500 MHz

High Freq

 N/A 41000 MHz

Gain

 N/A 21 dB

P1dB

 N/A 20 dBm

IP3

 N/A 27 dBm

Voltage

 N/A 5 V

Current

 N/A 295 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -1V
2. Apply VDD = +5V
4. Adjust VGG more positive until total IDD reaches 295mA
Note: -0.3V typ. Do not exceed +0.3V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -1V
4. Adjust VDD to 0V
5. Adjust VGG to 0V

Part Number

 N/A XR-B8T3-0404D
