XM-B8T2-0304D
XR-B8T2-0304D ROHS

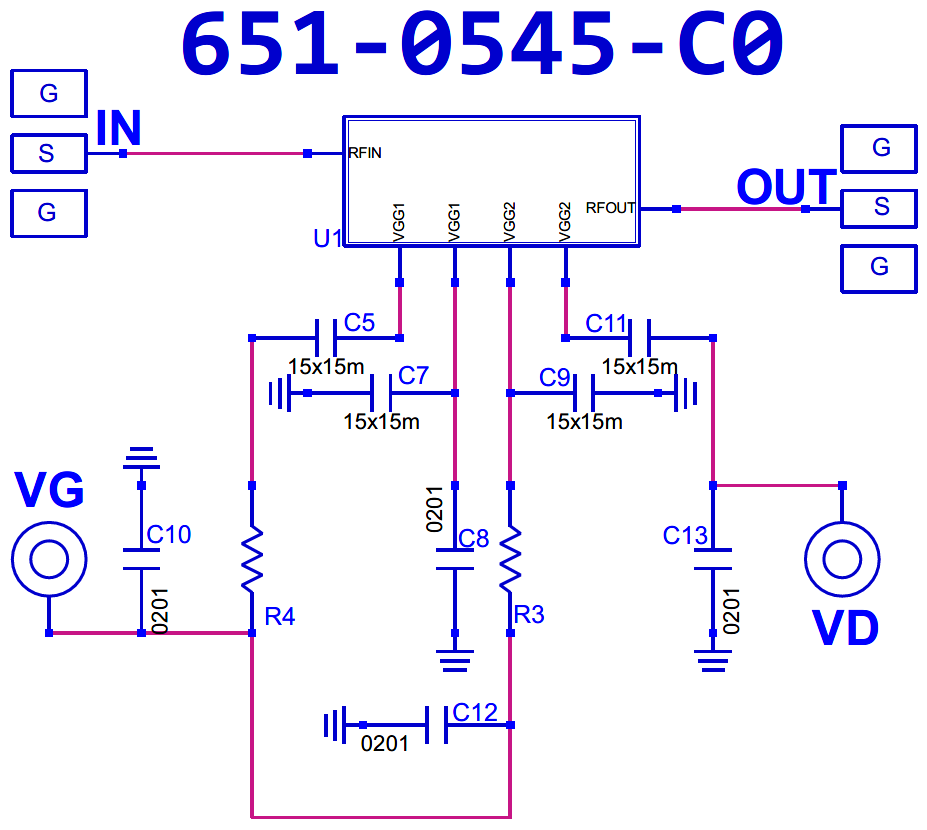

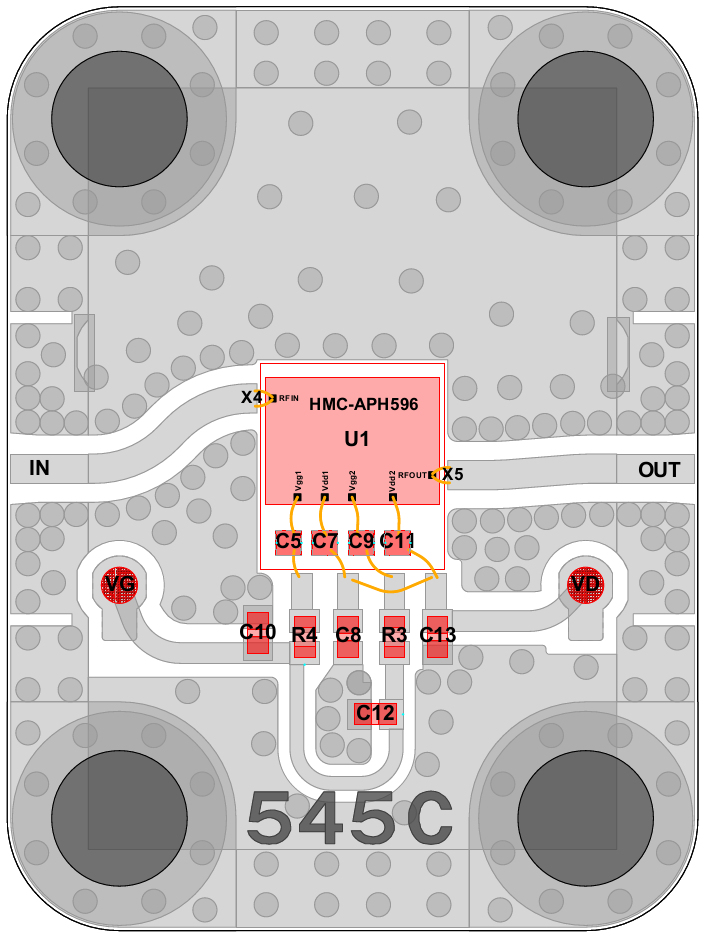

Amplifier, HMC-APH596-SX [PCB: 0545]
Recommended Bias Controller: XM-B8T4-0304D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC-APH596-SX

Low Freq

 N/A 16000 MHz

High Freq

 N/A 33000 MHz

Gain

 N/A 17 dB

P1dB

 N/A 24 dBm

IP3

 N/A 33 dBm

Voltage

 N/A 5 V

Current

 N/A 400 mA

ALL_ASSET

 N/A 1131P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -1.0V
2. Apply VD = 5.0V
3. Adjust VG more positive until IDQ reaches 400mA
Note: VG ~ -0.5V, Do not exceed 0.3V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -1.0V
3. Adjust VD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-B8T2-0304D
