XM-B8E2-0404D
XR-B8E2-0404D ROHS

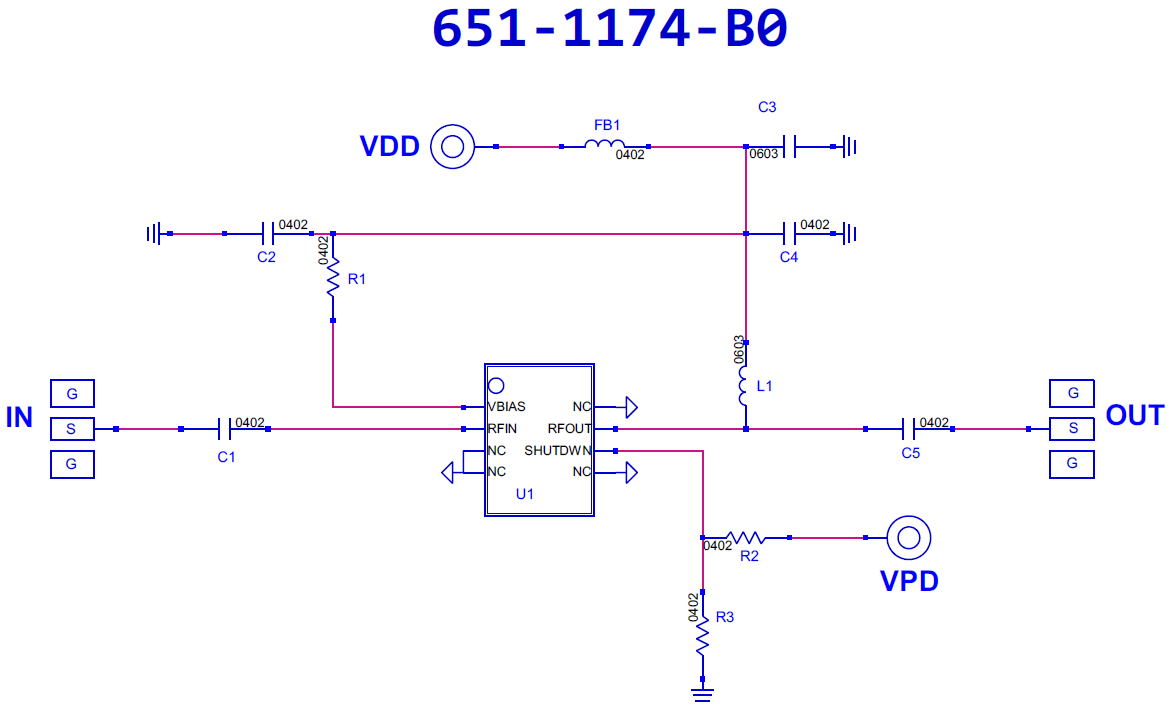

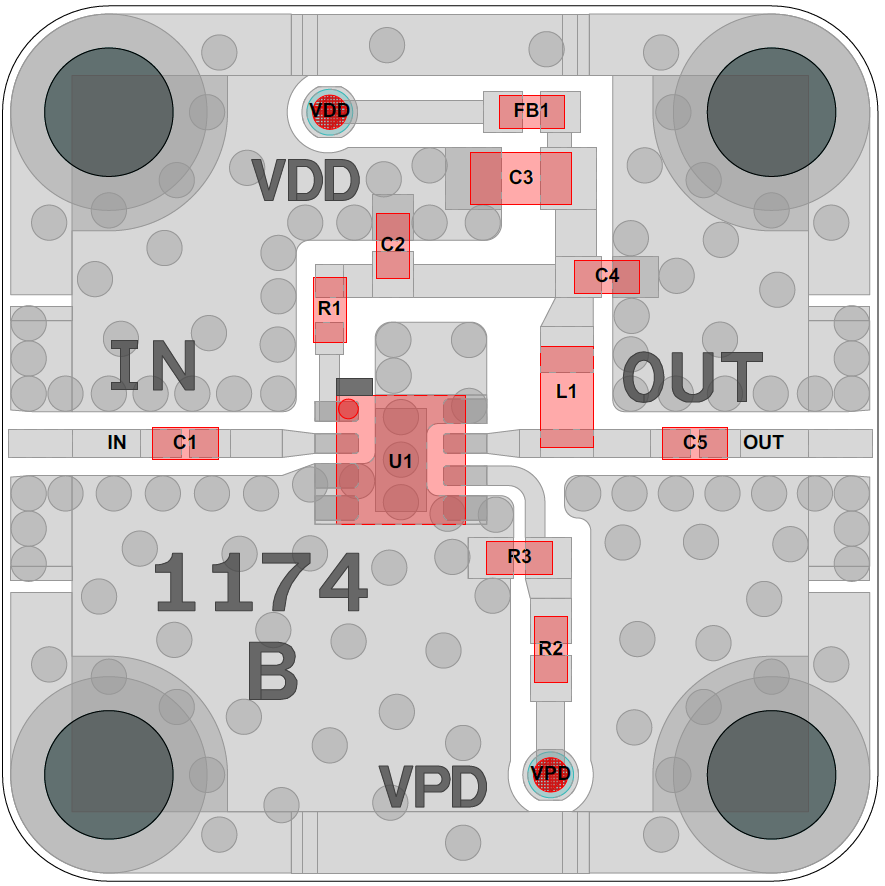

Amplifier, TQL9093 [PCB: 1174]
Recommended Bias Controller: XM-B8E5-0404D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A TQL9093

Low Freq

 N/A 600 MHz

High Freq

 N/A 4200 MHz

Gain

 N/A 20 dB

NF

 N/A 0.67 dB

P1dB

 N/A 21.7 dBm

IP3

 N/A 41.5 dBm

Voltage

 N/A 3.3 V

Current

 N/A 120 mA

N/A

Bias Instruction

 N/A

Note: VPD = 0V (On state) or 1.8V logic_VDD (Off state-Power down)
Default configuration = On (VPD=0V).

Power-up Sequence
1. Apply VDD = 5.0V
Verify IDD ~120mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-B8E2-0404D
