XM-B8D6-0404D
XR-B8D6-0404D ROHS

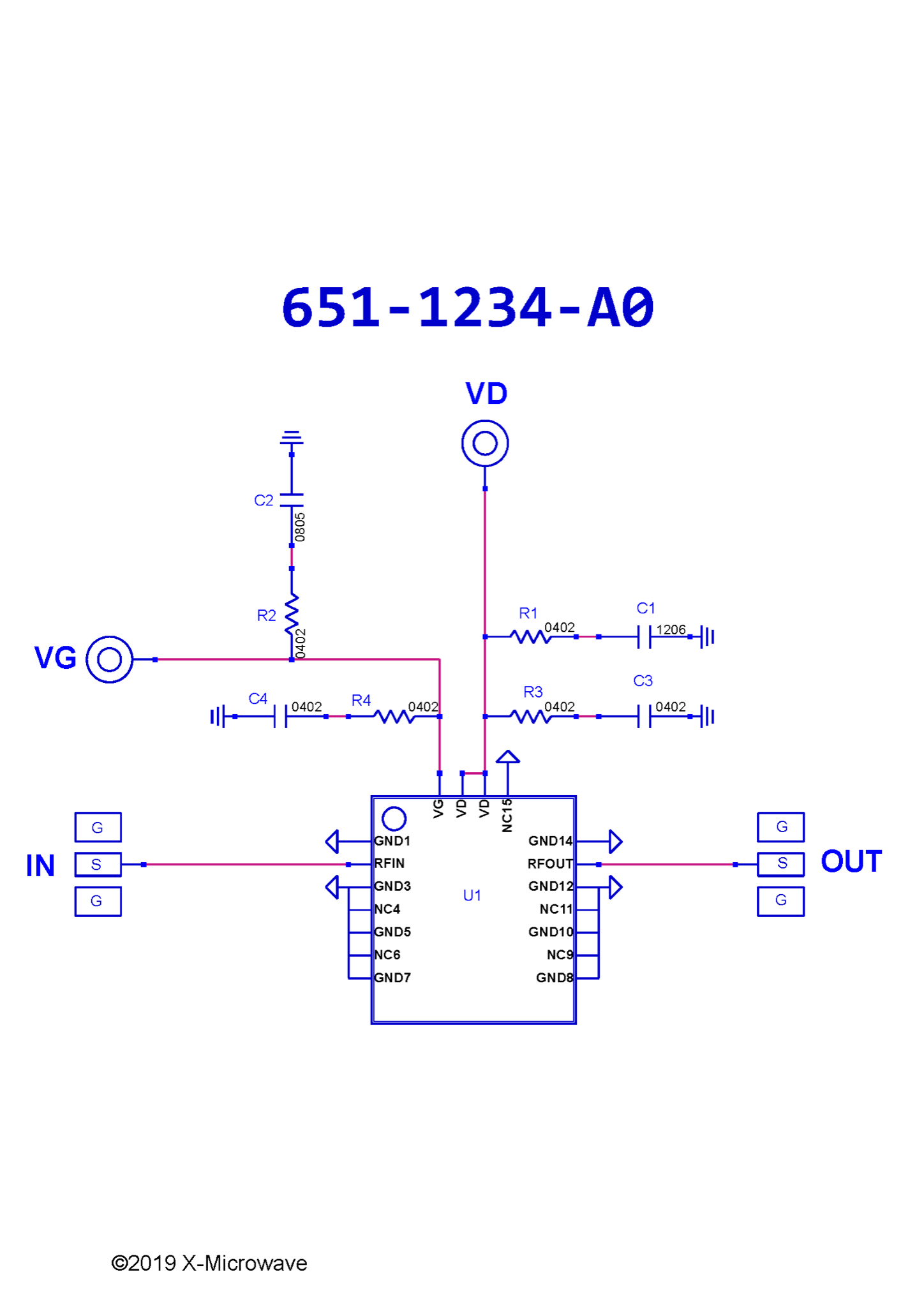

Amplifier, QPA2213 [PCB: 1234]
Recommended Bias Controller: XM-B8D7-0404D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A QPA2213

Low Freq

 N/A 2000 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 25 dB

NF

 N/A 4 dB

Voltage

 N/A 18 V

Current

 N/A 330 mA

ALL_ASSET

 N/A 1302P 1303M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Set ID limit to 900mA, IG limit to 10mA
2. Apply VG = -4.0V
3. Apply VD = +18.0V
4. Adjust VG more positive until IDQ reaches 330mA
Note: Do not exceed VG = 0.0V
5. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -4.0V; Ensure IDQ = 0mA
3. Adjust VD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-B8D6-0404D
