XM-B7H4-0404D
XR-B7H4-0404D ROHS

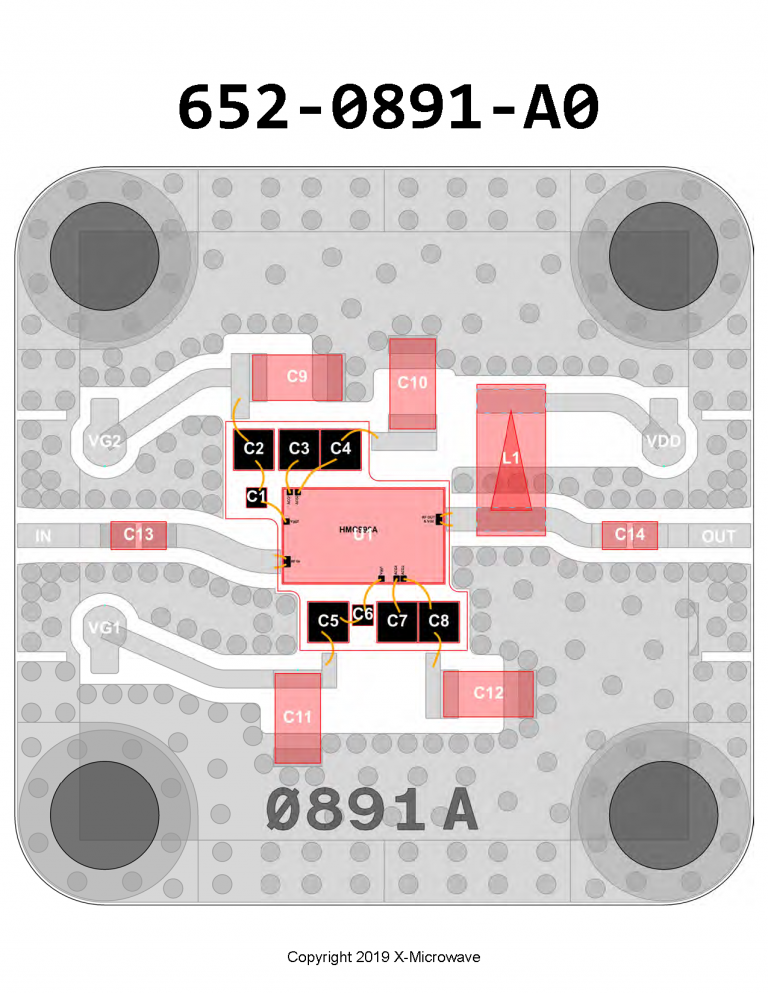

Amplifier, HMC998A [PCB: 0891]
Recommended Bias Controller: XM-B1M1-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC998A

Low Freq

 N/A 50 MHz

High Freq

 N/A 22000 MHz

Gain

 N/A 14.5 dB

NF

 N/A 2.5 dB

P1dB

 N/A 32.5 dBm

IP3

 N/A 43 dBm

Voltage

 N/A 15 V

Current

 N/A 500 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -2.0V
2. Apply VDD = +15V
3. Apply VG2 = +9.5V
4. Adjust VG1 more positive until ID reaches 500mA
Note: VG1 ~ -0.58V, Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -2.0V
4. Adjust VDD, VG2 to 0V
5. Adjust VG to 0V

Part Number

 N/A XR-B7H4-0404D
