XM-B6K7-0604D
XR-B6K7-0604D ROHS

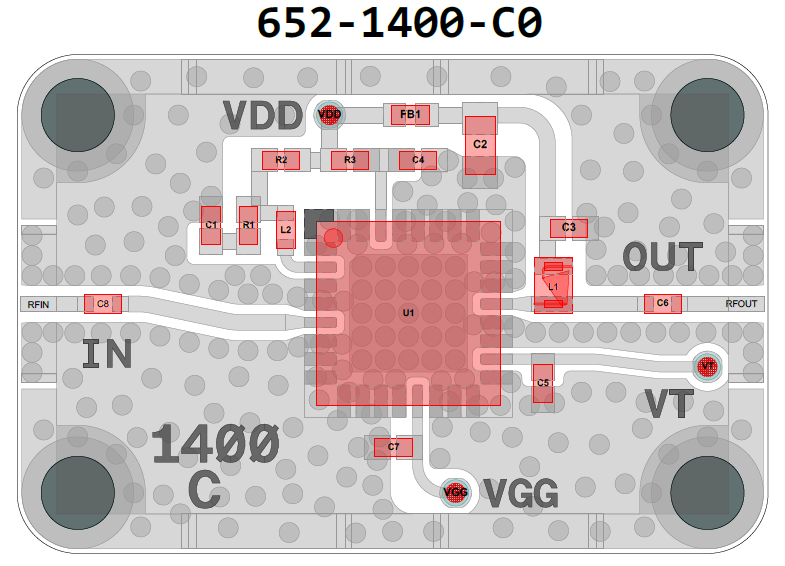

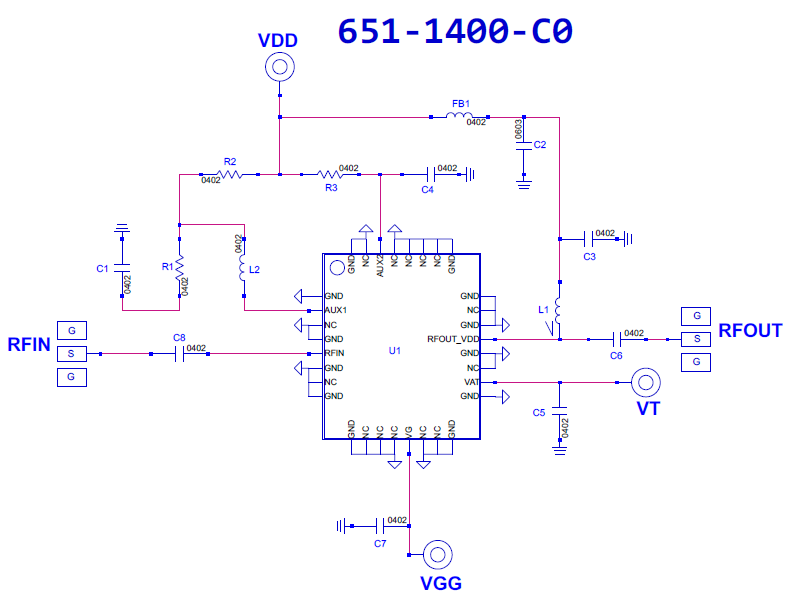

Amplifier, MAAL-011141 [PCB: 1400]
Recommended Bias Controller: XM-C375-0604D-SP

Configurations

Product Page

 N/A Macom

Spec Sheet

 N/A MAAL-011141

Low Freq

 N/A 50 MHz

High Freq

 N/A 28000 MHz

Gain

 N/A 17.5 dB

NF

 N/A 1.4 dB

P1dB

 N/A 15.5 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 5 V

Current

 N/A 60 mA

ALL_ASSET

 N/A 1333P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply +VIN = 6.0V
2. Apply VT = 5.0V
3. Apply VG = 0.0V
4. Adjust VG toward 0.7V until IDD = 75mA (0.635V Typical)
Note: Do not exceed VGG = +0.9V
5. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VG to 0V
3. Adjust VT to 0V
4. Adjust VDD to 0V

Part Number

 N/A XR-B6K7-0604D
