XM-B6D8-0404D
XR-B6D8-0404D ROHS

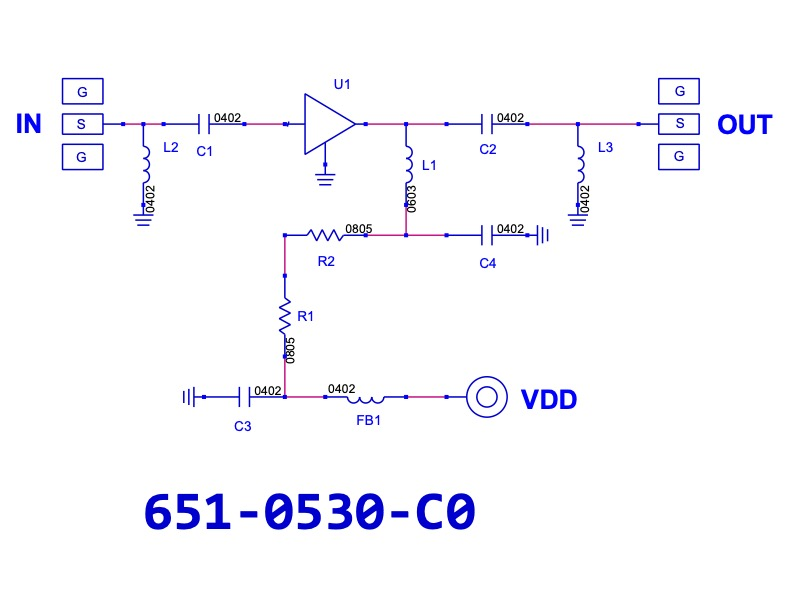

Amplifier, QPA5389A [PCB: 0530]
Recommended Bias Controller: XM-A4E3-0404D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A QPA5389A

Low Freq

 N/A 0 MHz

High Freq

 N/A 4500 MHz

Gain

 N/A 15.9 dB

NF

 N/A 3.7 dB

Voltage

 N/A 3.3 V

Current

 N/A 60 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +8V
Verify IDD ~60mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-B6D8-0404D
