XM-B5T3-0304D
XR-B5T3-0304D ROHS

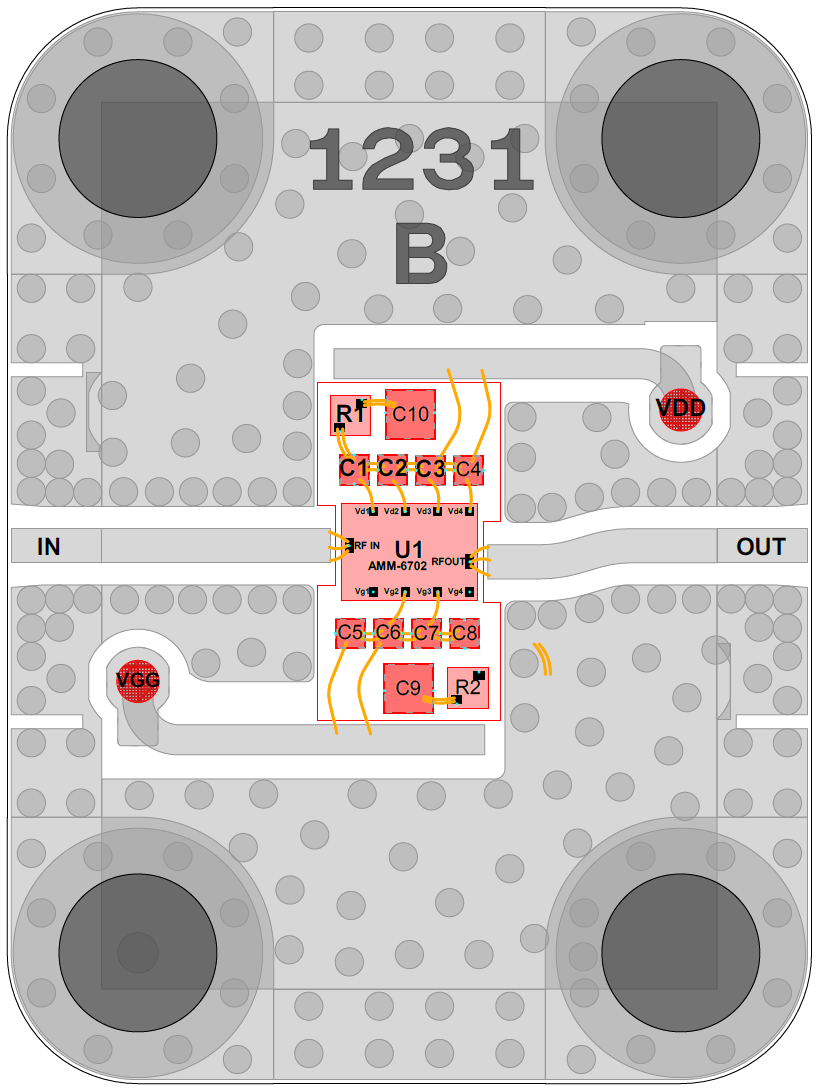

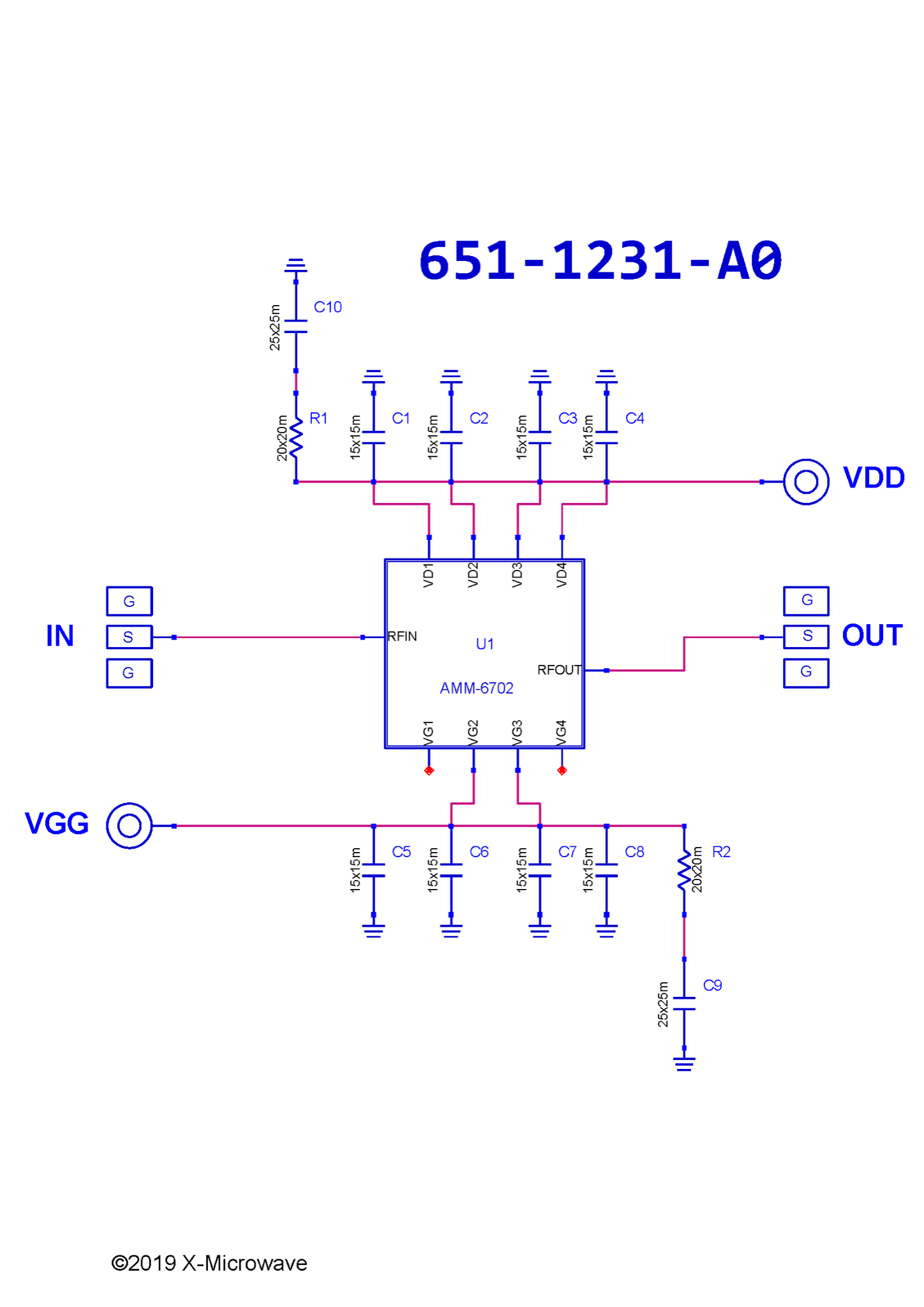

Amplifier, AMM-6702CH [PCB: 1231]
Recommended Bias Controller: XM-B5T4-0304D-SP

Configurations

Product Page

 N/A Marki Microwave

Spec Sheet

 N/A AMM-6702CH

Low Freq

 N/A 20000 MHz

High Freq

 N/A 55000 MHz

Gain

 N/A 25 dB

NF

 N/A 6.5 dB

P1dB

 N/A 14.8 dBm

IP3

 N/A 21 dBm

Voltage

 N/A 3 V

Current

 N/A 180 mA

ALL_ASSET

 N/A 1299P 1300M 1301M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -0.5V
2. Apply VD = 3.5V Verify ID approaches ~180mA
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
4. Adjust VD to 0V
5. Adjust VG to 0V

Part Number

 N/A XR-B5T3-0304D
