XM-B5T1-0604D
XR-B5T1-0604D ROHS

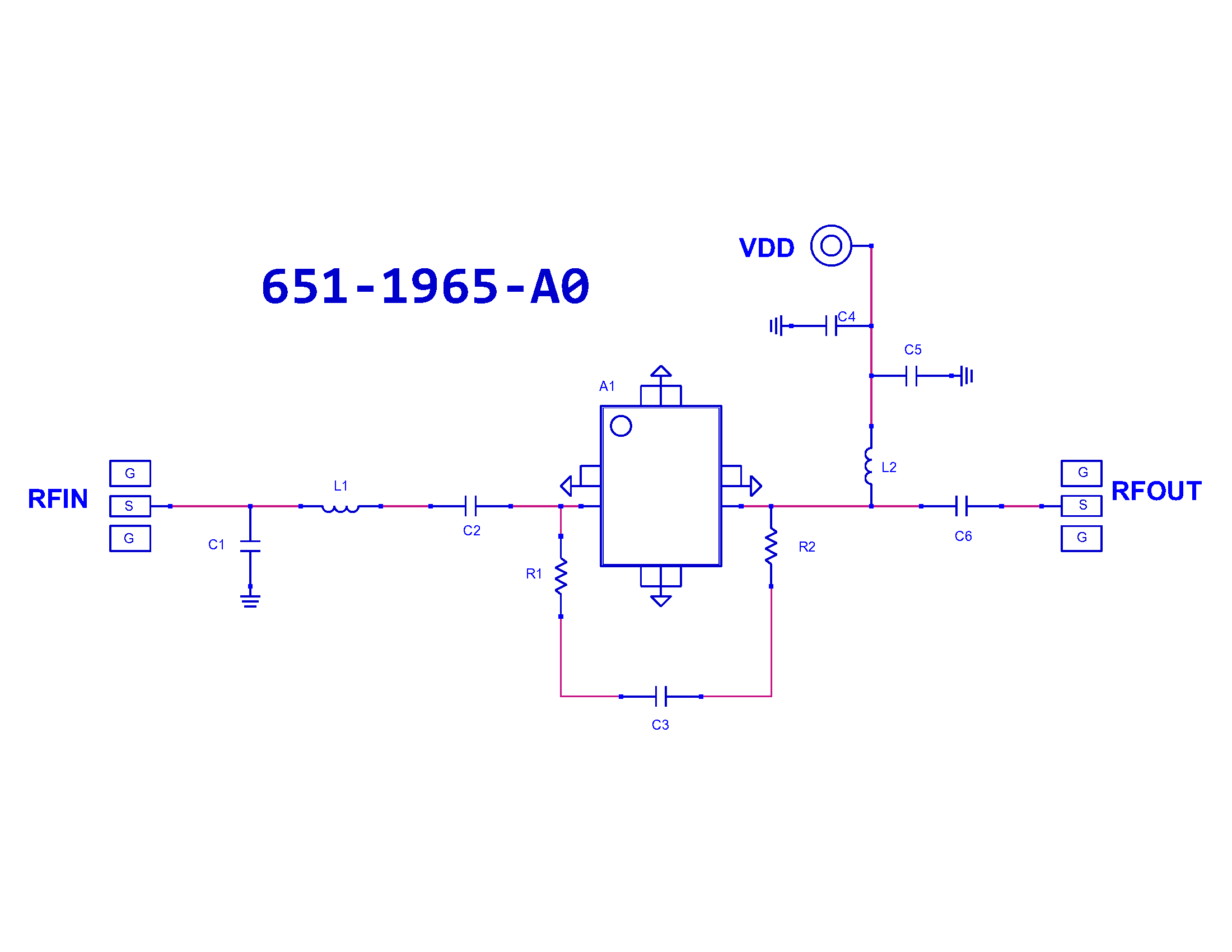

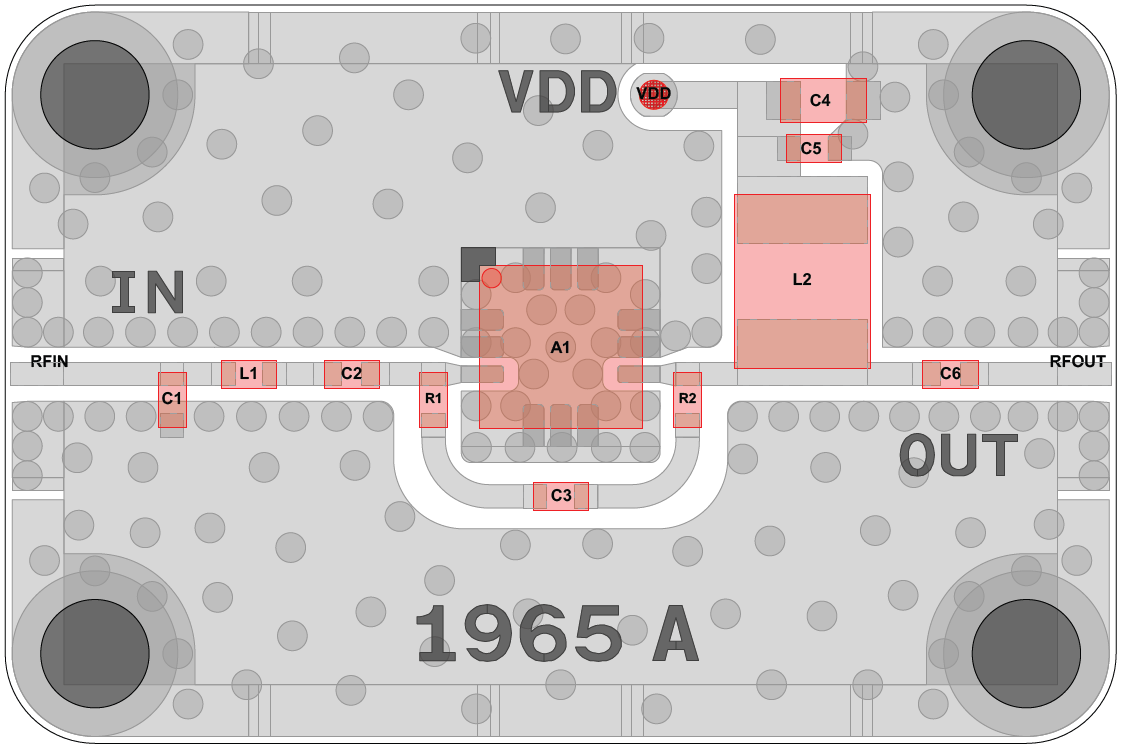

Amplifier, LHA-13LN+ [PCB: 1965]
Recommended Bias Controller: XM-A2J9-0404D-SP

Configurations

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A LHA-13LN+

Low Freq

 N/A 50 MHz

High Freq

 N/A 1000 MHz

Gain

 N/A 22.4 dB

NF

 N/A 1.1 dB

P1dB

 N/A 24.2 dBm

IP3

 N/A 40 dBm

Voltage

 N/A 5 V

Current

 N/A 143 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 5.0V
Verify IDD ~143mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-B5T1-0604D
