XM-B5R4-0409D
XR-B5R4-0409D ROHS

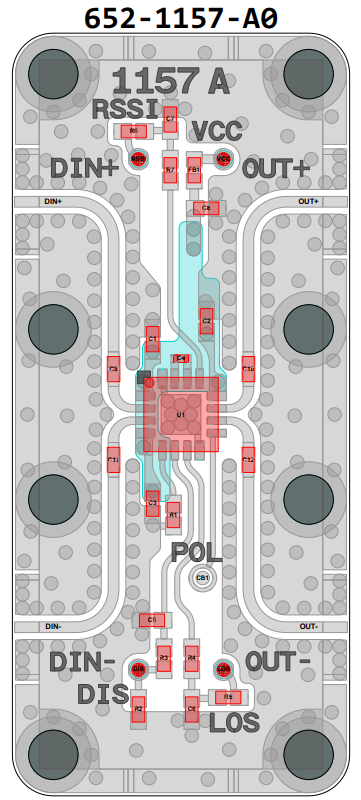

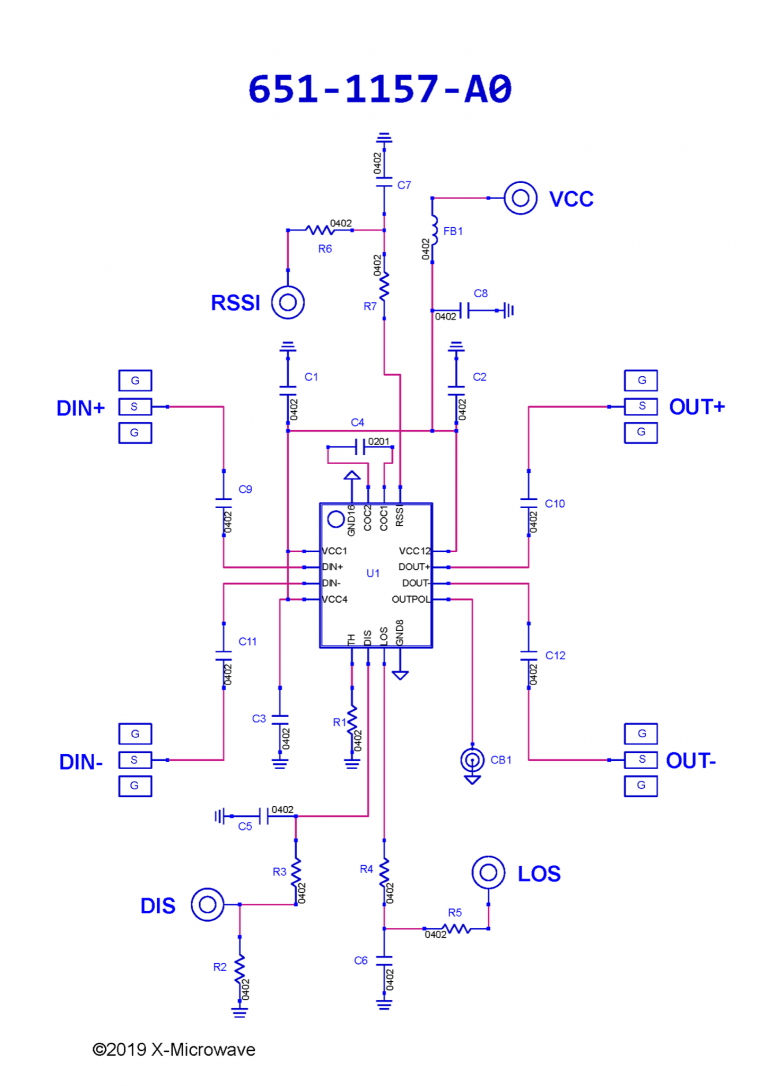

Amplifier, ONET4201PARGTR [PCB: 1157]
Recommended Bias Controller: XM-B5R6-0409D-SP

Configurations

Product Page

 N/A Texas Instruments

Spec Sheet

 N/A ONET4201PARGTR

Low Freq

 N/A 0.02 MHz

High Freq

 N/A 4250 MHz

Gain

 N/A 50 dB

Voltage

 N/A 3 V

Current

 N/A 35 mA

ALL_ASSET

 N/A 1270P 1271M 1272M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VCC = 3.3V
Verify IDD ~65mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-B5R4-0409D
