XM-B5E6-0604D
XR-B5E6-0604D ROHS

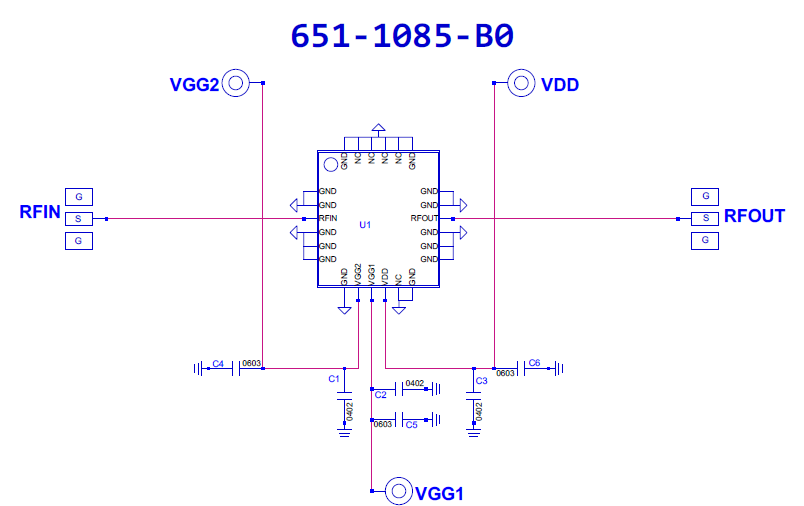

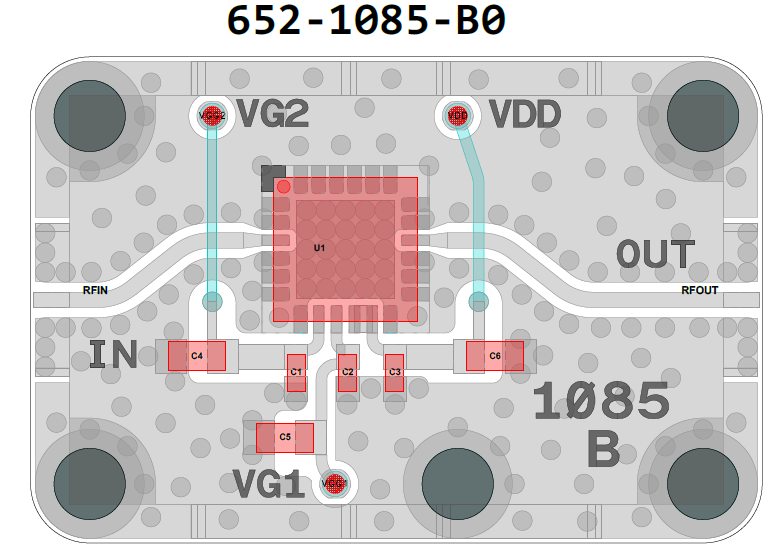

Amplifier, HMC753LP4E [PCB: 1085]
Recommended Bias Controller: XM-B5E7-0604D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC753LP4E

Low Freq

 N/A 1000 MHz

High Freq

 N/A 11000 MHz

Gain

 N/A 16.5 dB

NF

 N/A 1.5 dB

P1dB

 N/A 18 dBm

IP3

 N/A 30 dBm

Voltage

 N/A 5 V

Current

 N/A 55 mA

ALL_ASSET

 N/A 1263P 1264M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -1V
2. Apply VDD = 5.0V
3. Apply VG2 = +1.5V
4. Adjust VG1 more positive until IDQ reaches 55mA
Note: VG1 ~ -0.8V, Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -1V
3. Adjust VG2 to 0V
4. Adjust VDD to 0V
5. Adjust VG1 to 0V

Part Number

 N/A XR-B5E6-0604D
