Request Information

XM-B4V9-0804D
XR-B4V9-0804D ROHS

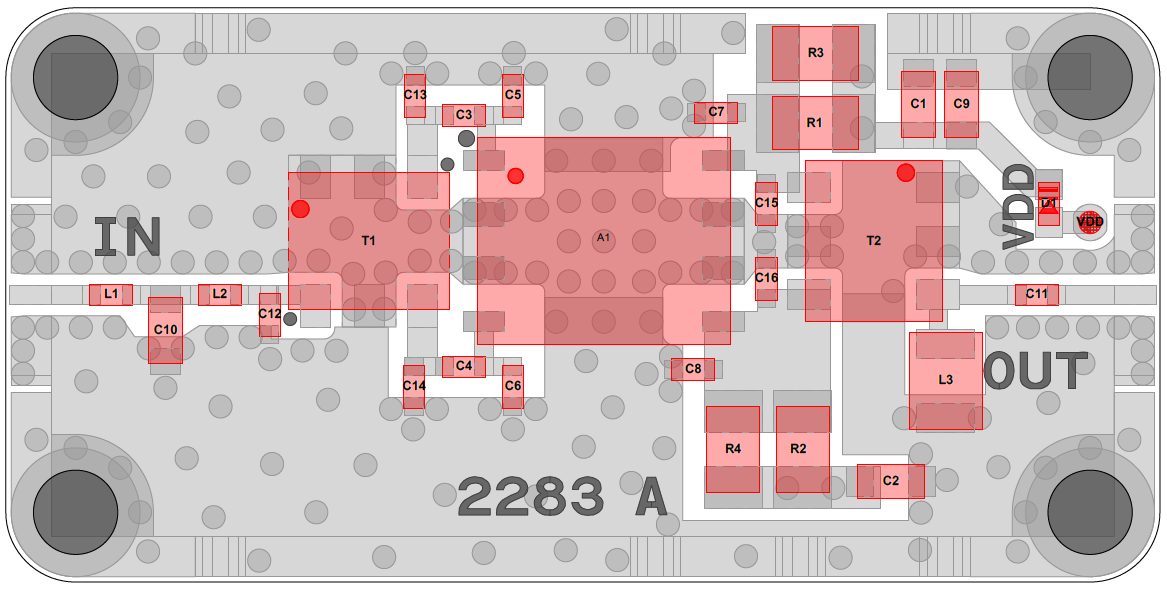

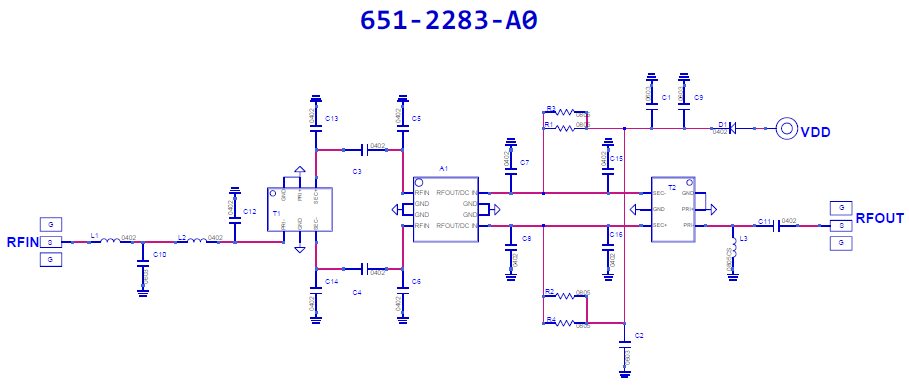

Amplifier, MGVA-63+ [PCB: 2283]
Recommended Bias Controller: XM-B4Y7-0604D-SP

Configurations

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A MGVA-63+

Low Freq

 N/A 40 MHz

High Freq

 N/A 3000 MHz

Gain

 N/A 21.4 dB

NF

 N/A 3.6 dB

P1dB

 N/A 19.4 dBm

IP3

 N/A 34.3 dBm

Voltage

 N/A 5 V

Current

 N/A 69 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5.4V
Verify IDD ~69mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-B4V9-0804D
