XM-B4V7-0604D
XR-B4V7-0604D ROHS

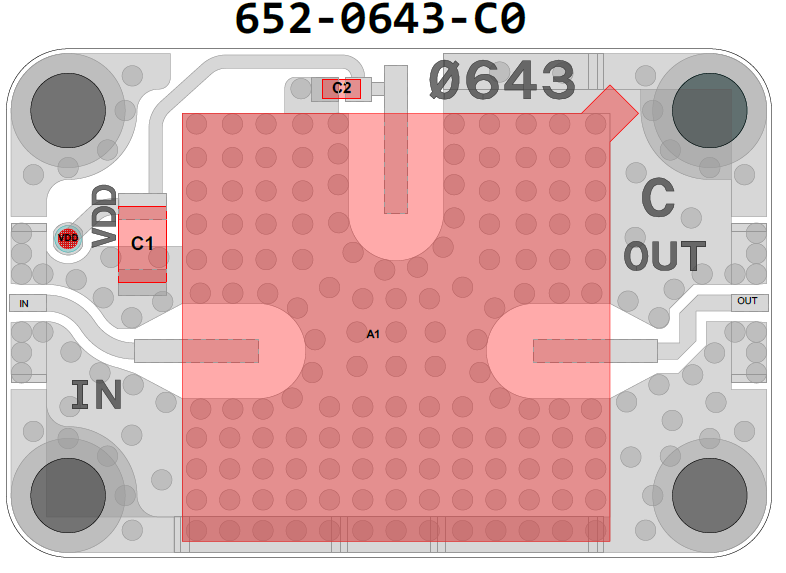

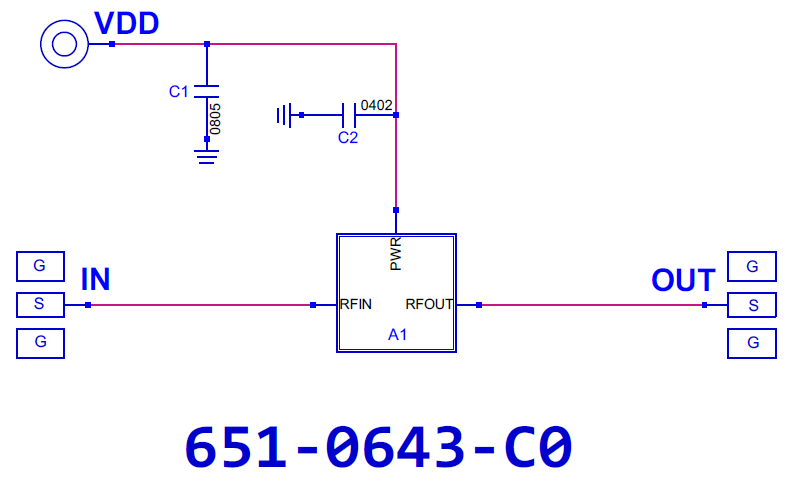

Amplifier, AS5066 [PCB: 0643]
Recommended Bias Controller: XM-A2J6-0404D-SP

Product Page

 N/A Teledyne

Low Freq

 N/A 100 MHz

High Freq

 N/A 5200 MHz

Gain

 N/A 19.5 dB

NF

 N/A 4 dB

P1dB

 N/A 20 dBm

IP3

 N/A 35 dBm

Voltage

 N/A 15 V

Current

 N/A 160 mA

ALL_ASSET

 N/A 1168P 1169M

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 15.0V
Verify IDD ~160mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-B4V7-0604D
