XM-B4V2-0804C-03
XR-B4V2-0804C-03 ROHS

Amplifier, HMC637BPM5E [PCB: 0844]

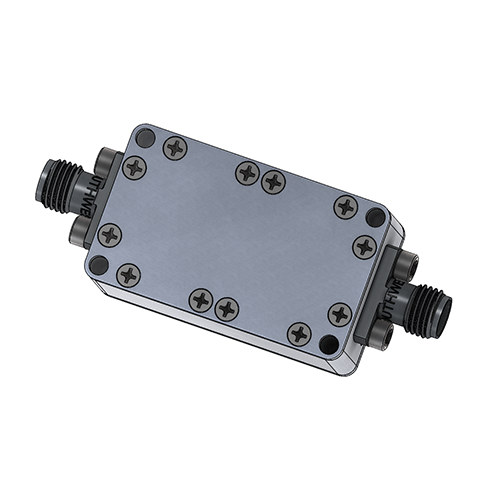

Connectorized Housing
Included Bias Controller: XM-A2J5-0404D

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC637BPM5E

Low Freq

 N/A 50 MHz

High Freq

 N/A 7500 MHz

Gain

 N/A 15.5 dB

NF

 N/A 3.5 dB

P1dB

 N/A 28 dBm

IP3

 N/A 39 dBm

Voltage

 N/A 8 V

Current

 N/A 345 mA

Connector Series

 N/A SuperSMA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Set +VIN = 13.5V min.
2. Apply the RF input signal



Power-down Sequence
1. Remove the RF input signal
2. Set +VIN to 0V

Part Number

 N/A XR-B4V2-0804C-03
