XM-B4R6-0404D
XR-B4R6-0404D ROHS

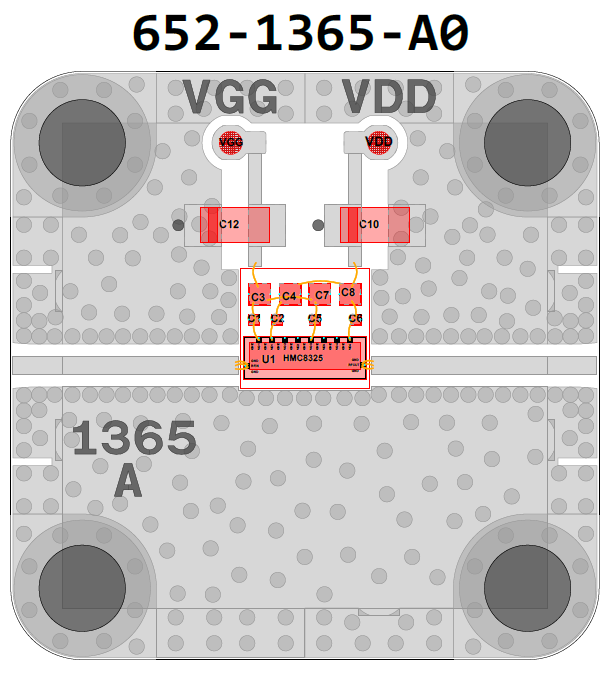

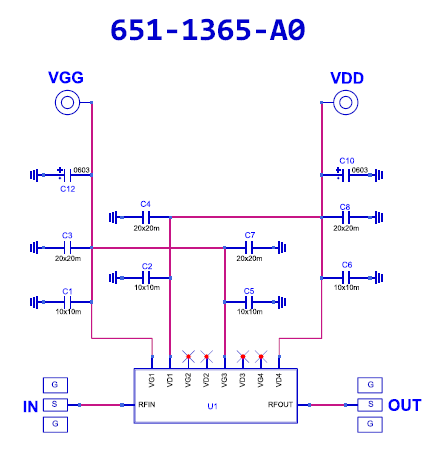

Amplifier, HMC8325 [PCB: 1365]

Product Page

 N/A ADI

Spec Sheet

 N/A HMC8325

Low Freq

 N/A 71000 MHz

High Freq

 N/A 86000 MHz

Gain

 N/A 21 dB

NF

 N/A 3.6 dB

P1dB

 N/A 13 dBm

IP3

 N/A 22 dBm

Voltage

 N/A 3 V

Current

 N/A 50 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -2.0V
2. Apply VDD = 15.0V
3. Adjust VGG more positive until IDQ reaches 50mA
Note: Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -2.0V
4. Adjust VDD to 0V
5. Adjust VGG to 0V

Part Number

 N/A XR-B4R6-0404D
