XM-B2P8-0404D
XR-B2P8-0404D ROHS

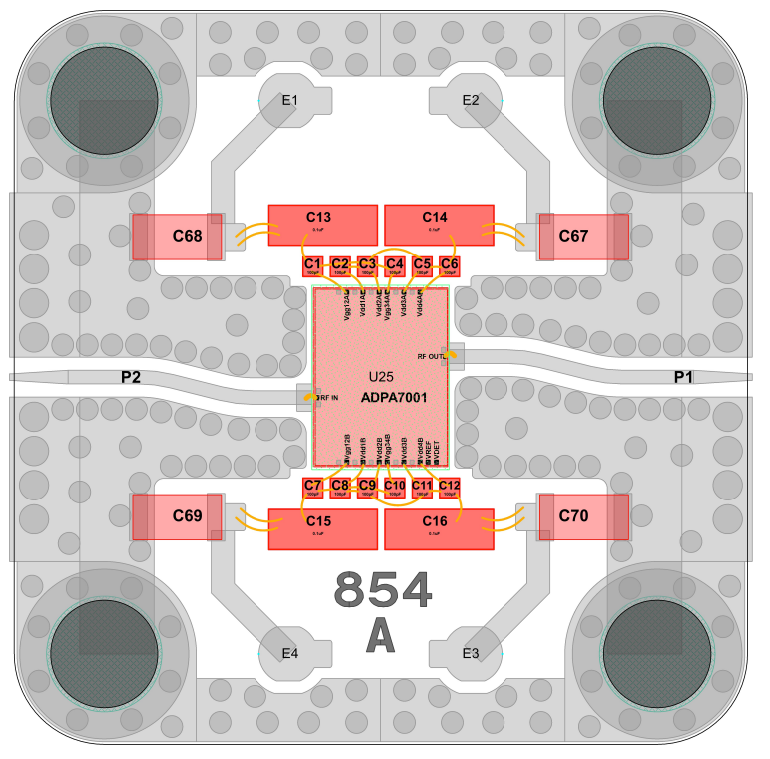

Amplifier, ADPA7001 [PCB: 0854]
Recommended Bias Controller: XM-C9P6-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADPA7001

Low Freq

 N/A 50000 MHz

High Freq

 N/A 95000 MHz

Gain

 N/A 14.5 dB

P1dB

 N/A 17 dBm

IP3

 N/A 25 dBm

Voltage

 N/A 1.5 V

Current

 N/A 350 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 3.5V
Verify IDD ~350mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-B2P8-0404D
