XM-B1W2-0404D
XR-B1W2-0404D ROHS

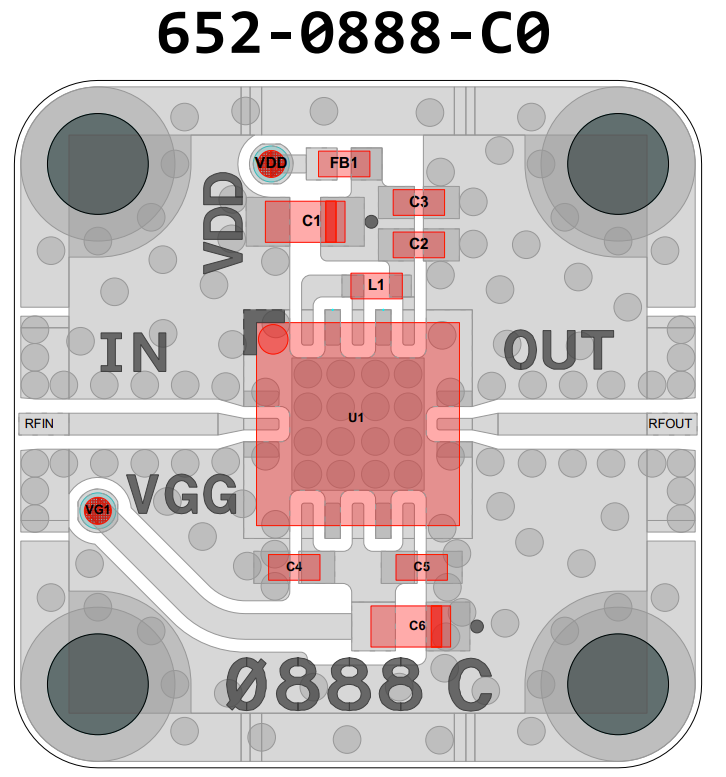

Amplifier, QPA2609 [PCB: 0888]
Recommended Bias Controller: XM-B1W3-0404D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A QPA2609

Low Freq

 N/A 7000 MHz

High Freq

 N/A 14000 MHz

Gain

 N/A 26 dB

NF

 N/A 1.1 dB

P1dB

 N/A 18 dBm

IP3

 N/A 23 dBm

Voltage

 N/A 3.5 V

Current

 N/A 120 mA

ALL_ASSET

 N/A 1212P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -1.3V
2. Apply VDD = 3.5V
3. Adjust VG1 more positive until IDQ reaches 120mA
Note: VG1 ~ -0.46V, Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -1.3V
3. Adjust VDD to 0V
4. Adjust VG1 to 0V

Part Number

 N/A XR-B1W2-0404D
