XM-B1U1-0304D
XR-B1U1-0304D ROHS

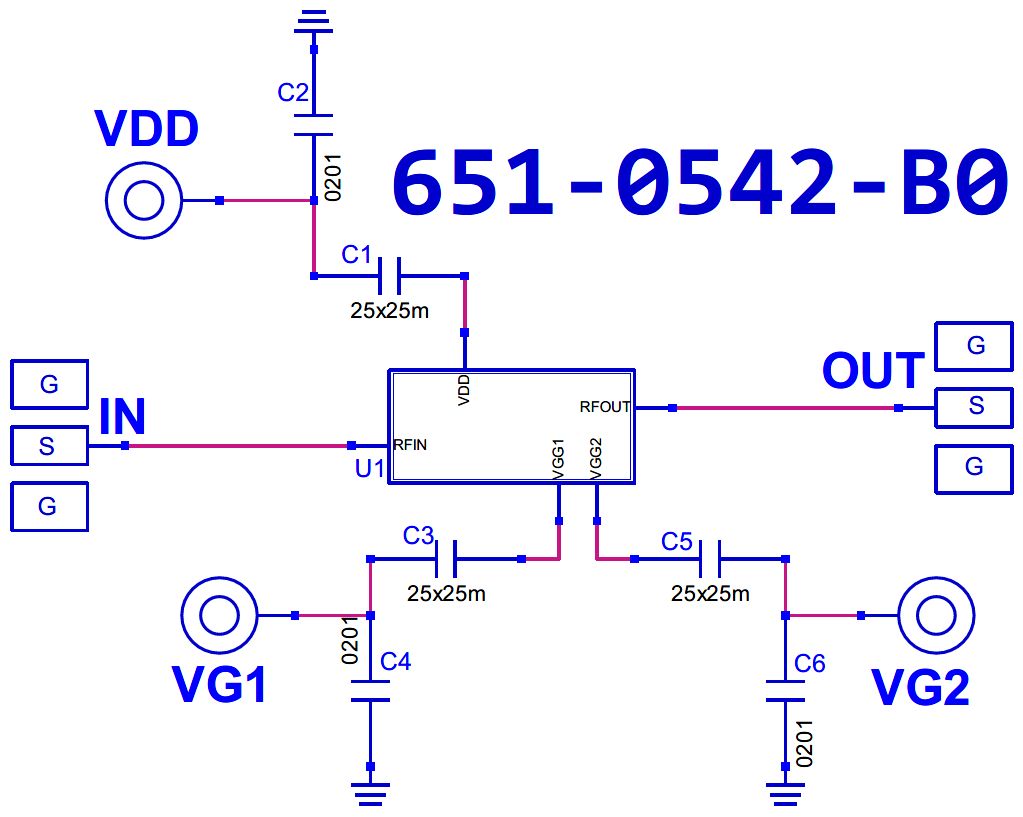

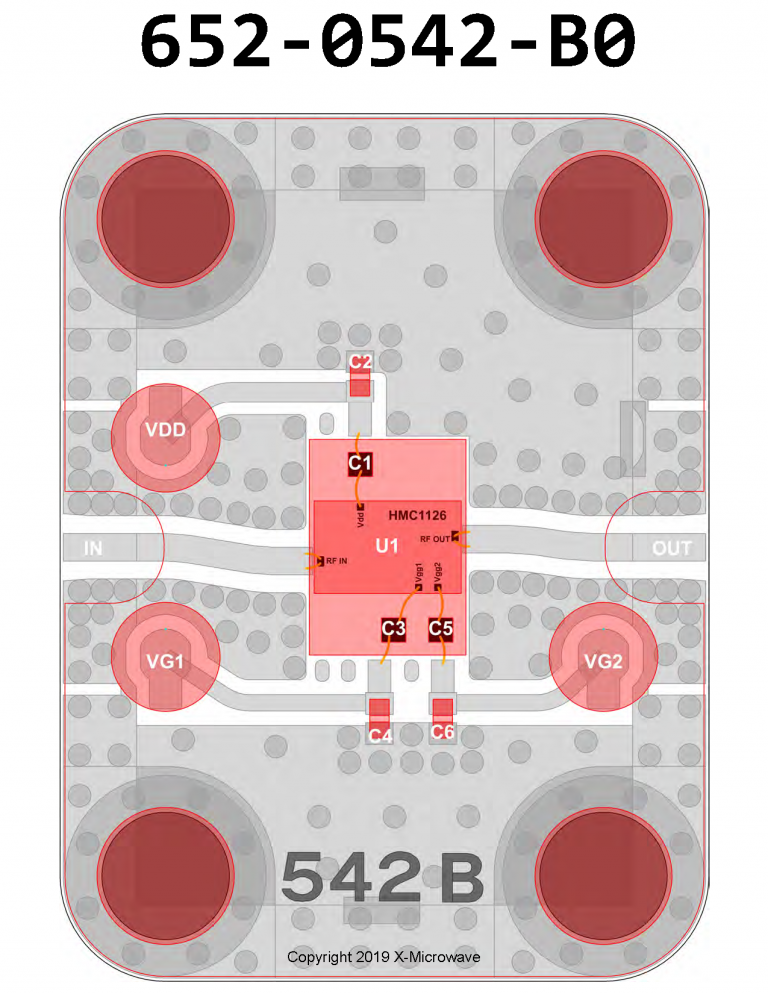

Amplifier, HMC1126 [PCB: 0542]
Recommended Bias Controller: XM-B1U2-0304D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC1126

Low Freq

 N/A 2000 MHz

High Freq

 N/A 50000 MHz

Gain

 N/A 11 dB

NF

 N/A 4.5 dB

P1dB

 N/A 17.5 dBm

IP3

 N/A 28 dBm

Voltage

 N/A 5 V

Current

 N/A 65 mA

ALL_ASSET

 N/A 1128P 1129M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -2.0V
2. Apply VDD = 5.0V
3. Apply VG2 = +1.4V
4. Adjust VG1 more positive until IDQ reaches 65mA
Note: VG1 ~ -TBDV, Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -2.0V
3. Adjust VG2 to 0V
4. Adjust VDD to 0V
5. Adjust VG1 to 0V

Part Number

 N/A XR-B1U1-0304D
