XM-B1R2-0404D
XR-B1R2-0404D ROHS

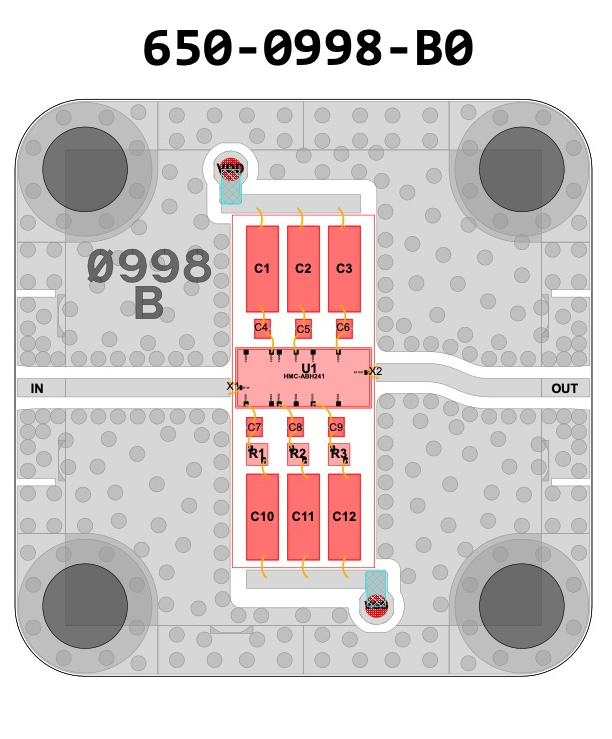

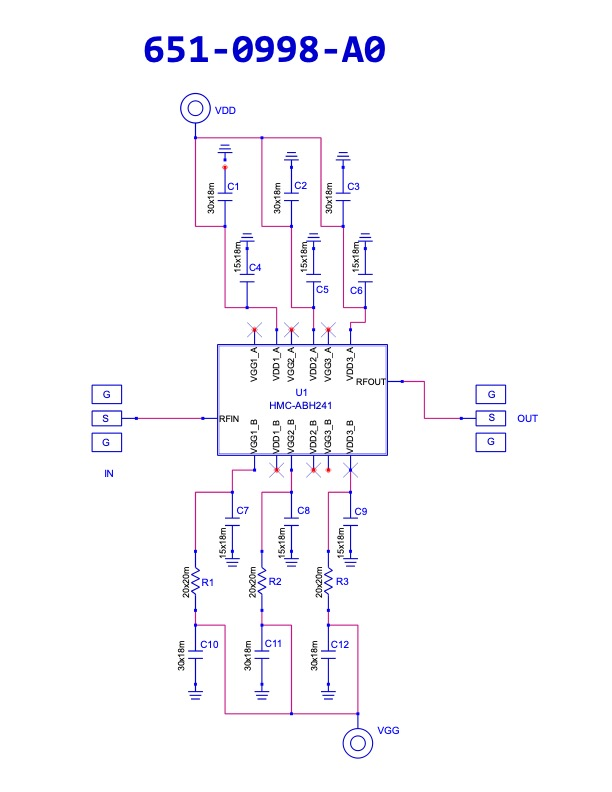

Amplifier, HMC-ABH241 [PCB: 0998]
Recommended Bias Controller: XM-B1R3-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC-ABH241

Low Freq

 N/A 50000 MHz

High Freq

 N/A 66000 MHz

Gain

 N/A 24 dB

P1dB

 N/A 17 dBm

IP3

 N/A 25 dBm

Voltage

 N/A 5 V

Current

 N/A 220 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -1V
2. Apply VDD = +5V
3. Adjust VGG more positive until IDQ reaches 220mA
Note: Do not exceed +0.3V. -0.3V typ.
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -1V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-B1R2-0404D
