XM-B1N9-0509D
XR-B1N9-0509D ROHS

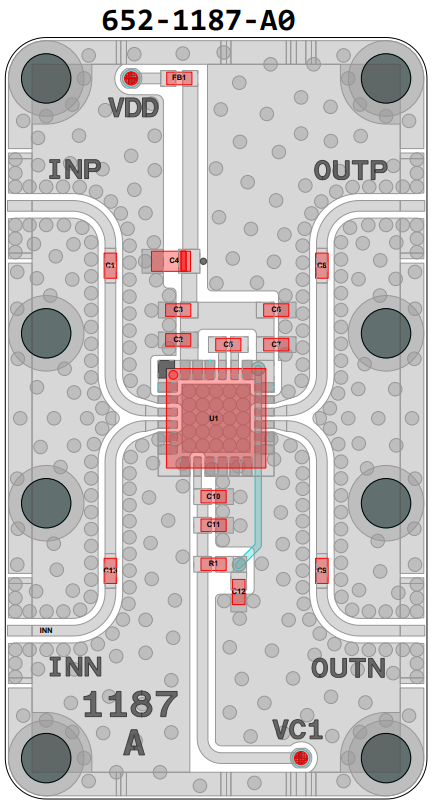

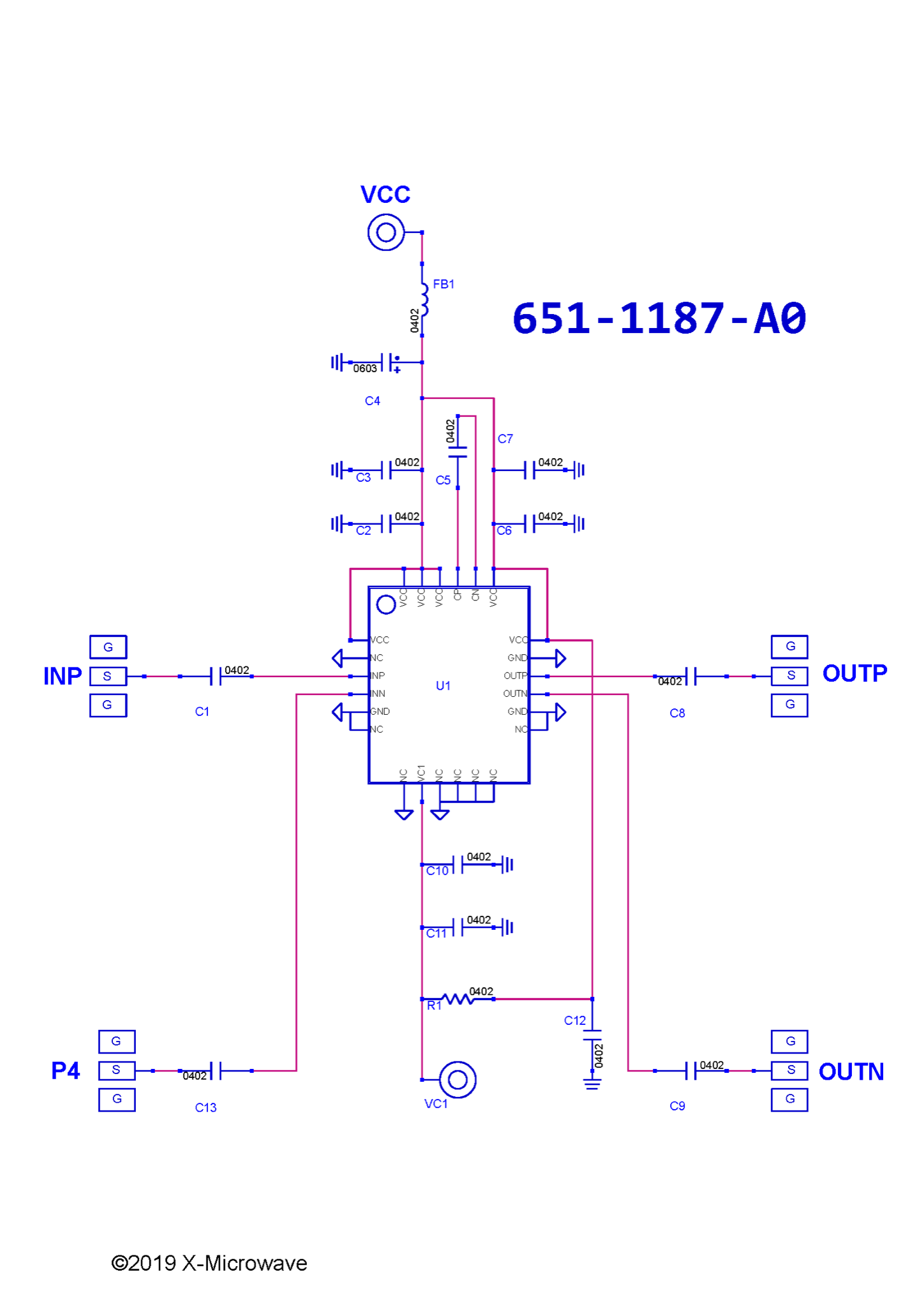

Amplifier, HMC750LP4E [PCB: 1187]
Recommended Bias Controller: XM-B5R7-0509D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC750LP4E

Low Freq

 N/A 50 MHz

High Freq

 N/A 16000 MHz

Gain

 N/A 44 dB

Voltage

 N/A 5 V

Current

 N/A 106 mA

ALL_ASSET

 N/A 1279P 1280M 1281M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5.0V
2. Apply VC1 = +2.5V
3. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VC1 to 0V
3. Adjust VDD to 0V

Part Number

 N/A XR-B1N9-0509D
