XM-B1N8-0509D
XR-B1N8-0509D ROHS

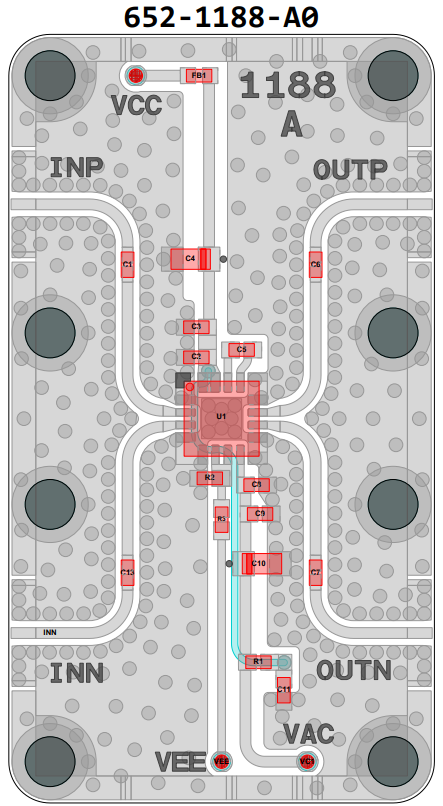

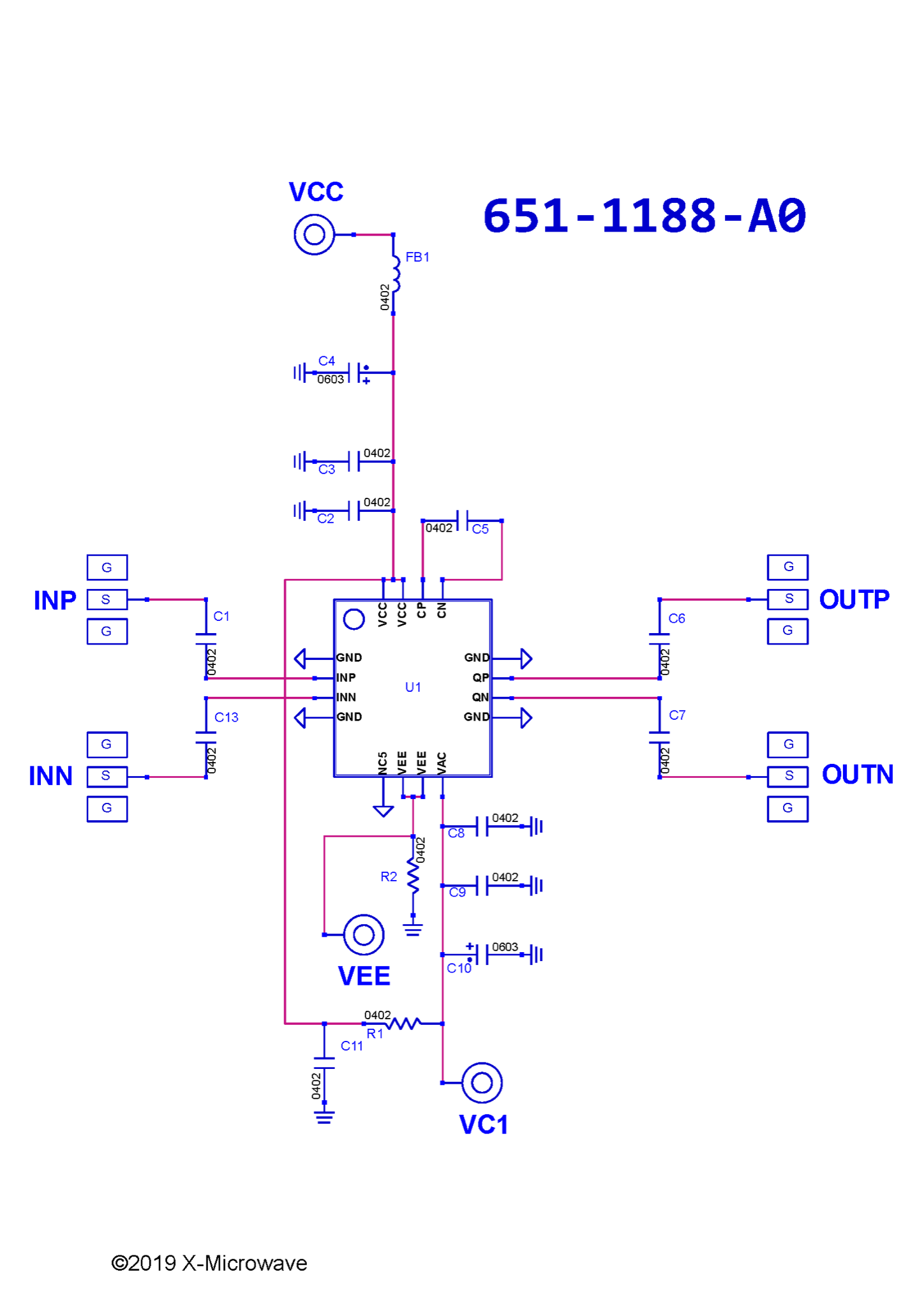

Amplifier, HMC865LC3 [PCB: 1188]
Recommended Bias Controller: XM-B1P7-0509D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC865LC3

Low Freq

 N/A 50 MHz

High Freq

 N/A 26500 MHz

Gain

 N/A 30 dB

P1dB

 N/A -6 dBm

Voltage

 N/A 3.3 V

Current

 N/A 90 mA

ALL_ASSET

 N/A 1282P 1283M 1284M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VCC = +3.3V
2. Apply VEE = +0.0V
3. Apply VAC = +1.6V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VAC to 0V
3. Adjust VEE to 0V
4. Adjust VCC to 0V

Part Number

 N/A XR-B1N8-0509D
