XM-B1N2-0604D
XR-B1N2-0604D ROHS

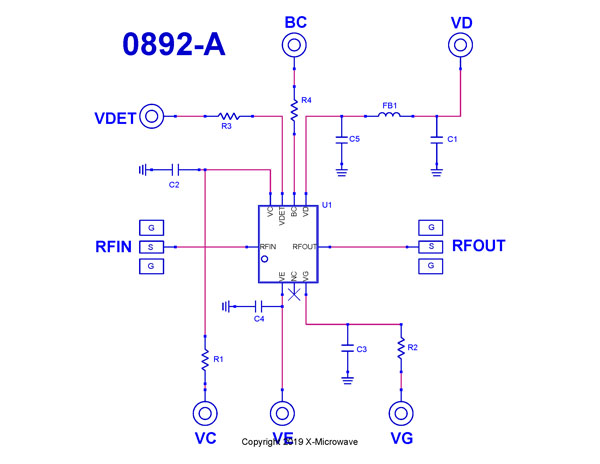

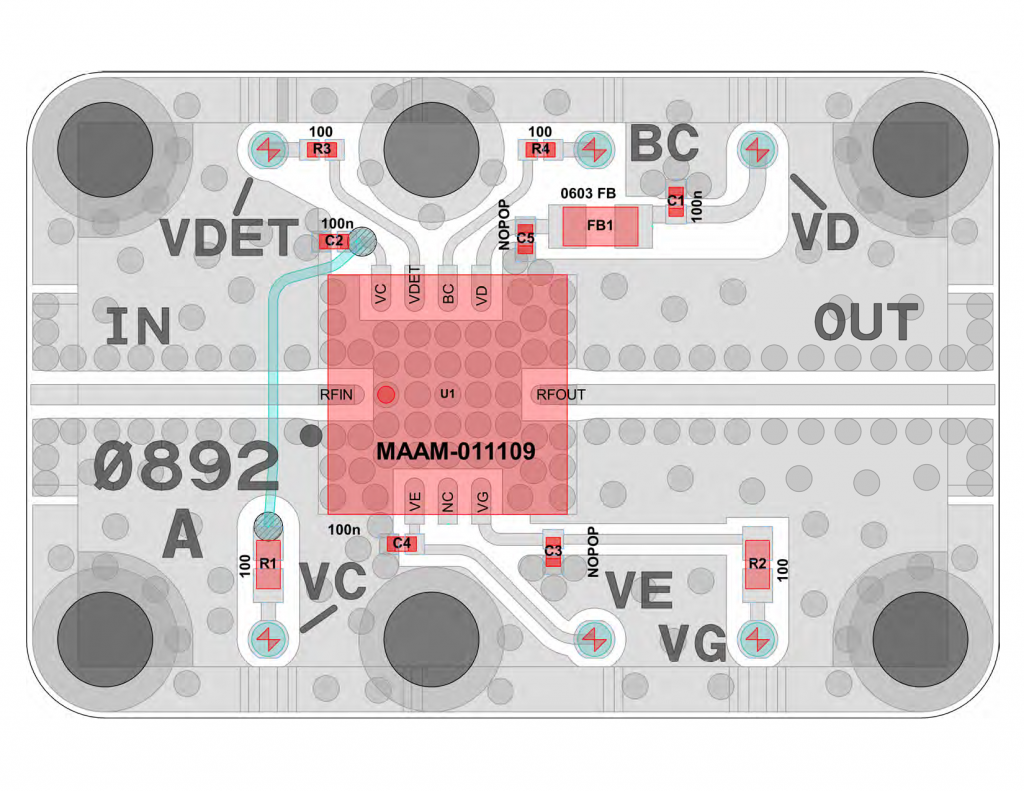

Amplifier, MAAM-011109 [PCB: 0892]
Recommended Bias Controller: XM-B1N3-0604D-SP

Configurations

Product Page

 N/A Macom

Spec Sheet

 N/A MAAM-011109

Low Freq

 N/A 10 MHz

High Freq

 N/A 40000 MHz

Gain

 N/A 13 dB

NF

 N/A 3.5 dB

P1dB

 N/A 18 dBm

IP3

 N/A 24 dBm

Voltage

 N/A 5 V

Current

 N/A 190 mA

ALL_ASSET

 N/A 1216P 1217M 1218M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VE = -5.0V
2. Apply VD = +5.0V
3. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VD to 0V
3. Adjust VE to 0V

Note 1: VG = Open; The optional VG pin maybe used to override the automatic VE bias network to hard set the gate. Adjusting VG from -0.2 V to -0.6 V will change the quiescent current. If VG is used, VE should be left unconnected.

Note 2: BC = Open; The BC pin is typically left unconnected unless gain bandwidth and shape change is desired.

Note 3: VDET = Open; VDET pin is typically left unconnected unless a voltage reference is desired that is correlated to the output power.

Part Number

 N/A XR-B1N2-0604D
