XM-B1M2-0404D
XR-B1M2-0404D ROHS

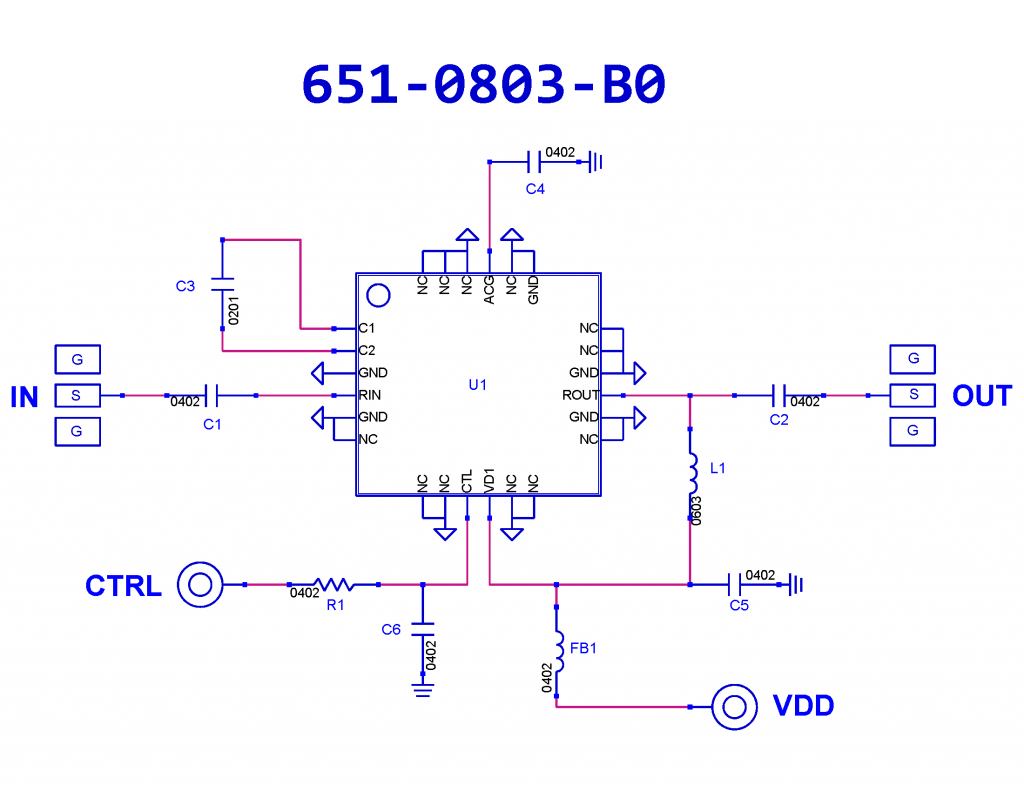

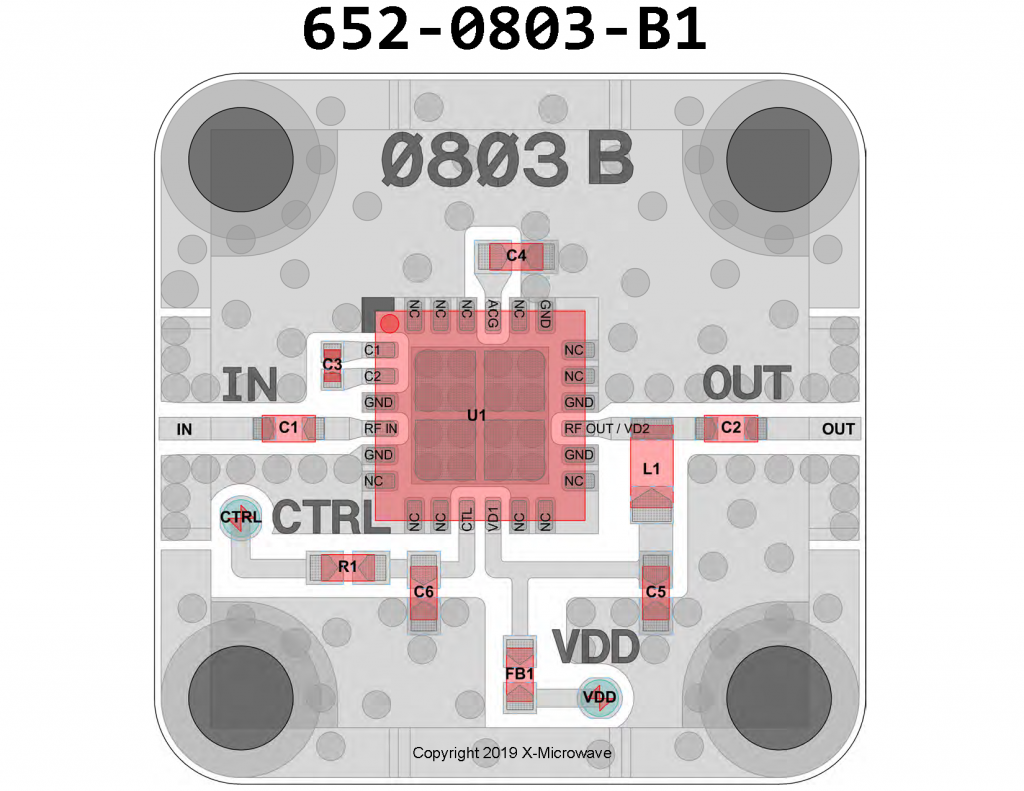

Amplifier, AM1065 [PCB: 0803]
Recommended Bias Controller: XM-B921-0404D-SP

Configurations

Product Page

 N/A Atlanta Micro

Spec Sheet

 N/A AM1065

Low Freq

 N/A 50 MHz

High Freq

 N/A 8000 MHz

Gain

 N/A 20 dB

NF

 N/A 2 dB

P1dB

 N/A 18 dBm

IP3

 N/A 31 dBm

Voltage

 N/A 3 V

Current

 N/A 72 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 4.7V
2. Apply CTRL = 3.3V Typ [+3.3V to +5.0V]
Verify IDD ~72mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-B1M2-0404D
