XM-B1L8-0604D
XR-B1L8-0604D ROHS

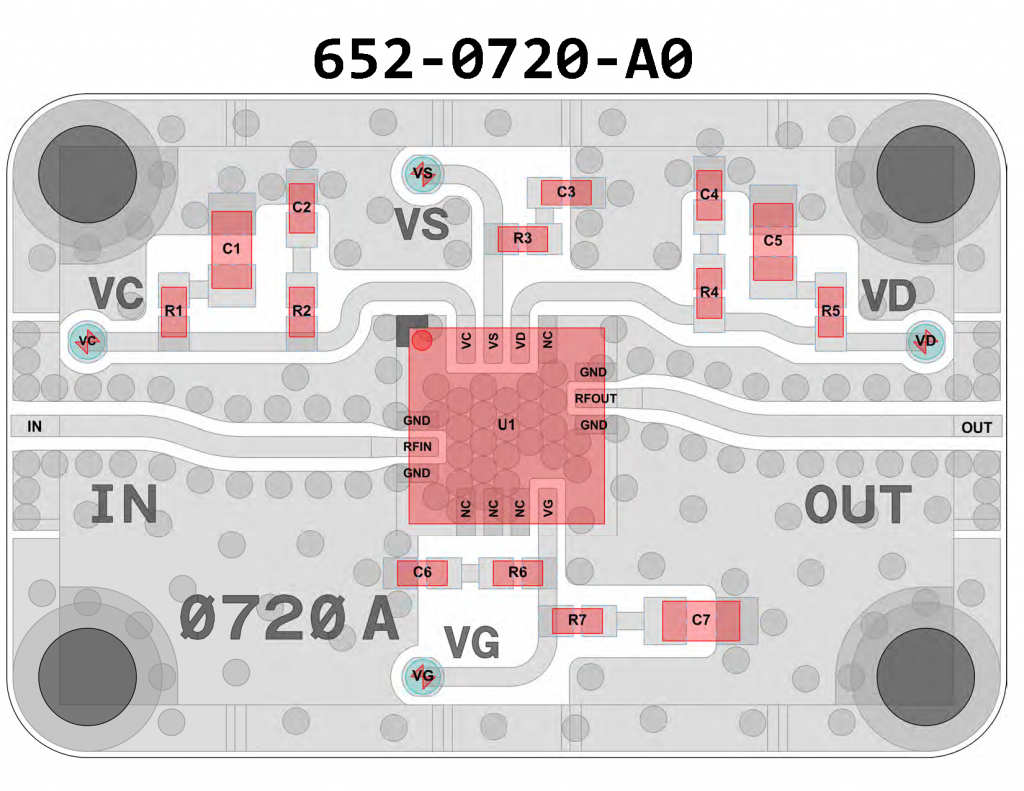

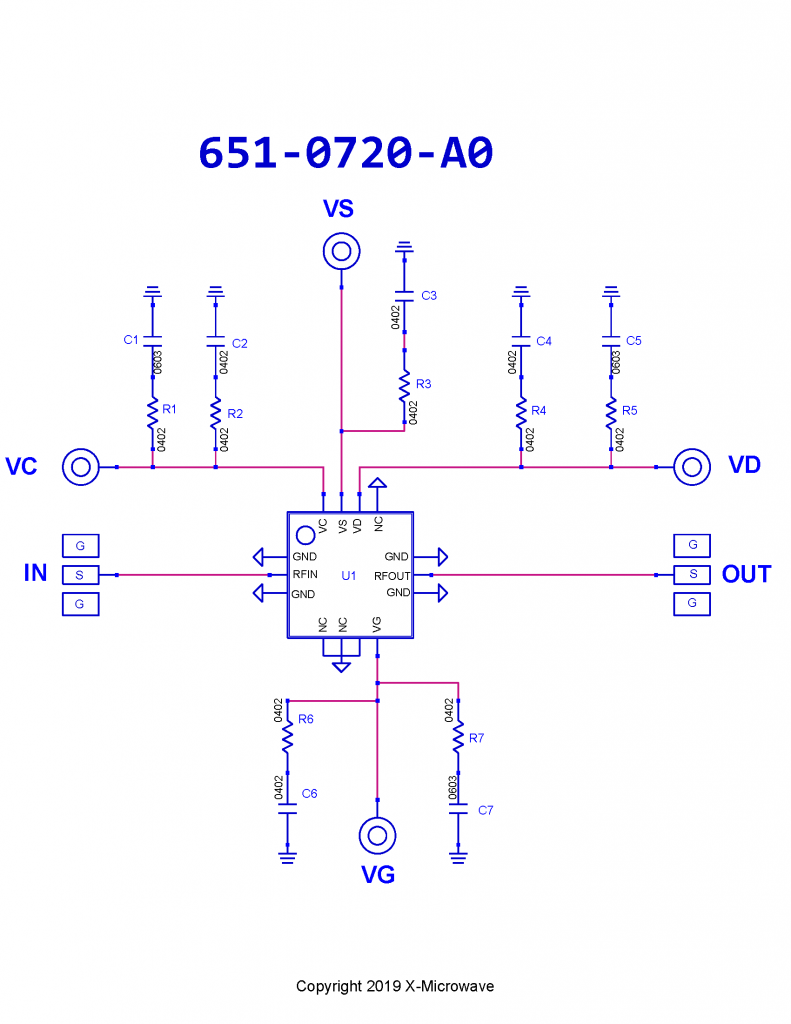

Amplifier, TGA2227-SM [PCB: 0720]
Recommended Bias Controller: XM-A8A2-0604D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A TGA2227-SM

Low Freq

 N/A 2000 MHz

High Freq

 N/A 22000 MHz

Gain

 N/A 15 dB

NF

 N/A 2.5 dB

P1dB

 N/A 22 dBm

Voltage

 N/A 5 V

Current

 N/A 125 mA

ALL_ASSET

 N/A 1174P 1175M 1176M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -5.0V
2. Apply VD = 8.0V
3. Apply VC = +2.0V
4. Adjust VG more positive until IDQ reaches 125mA
Note: Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -5.0V
3. Adjust VC to 0V
4. Adjust VDD to 0V
5. Adjust VG1 to 0V

Part Number

 N/A XR-B1L8-0604D
