XM-B1H5-0404D
XR-B1H5-0404D ROHS

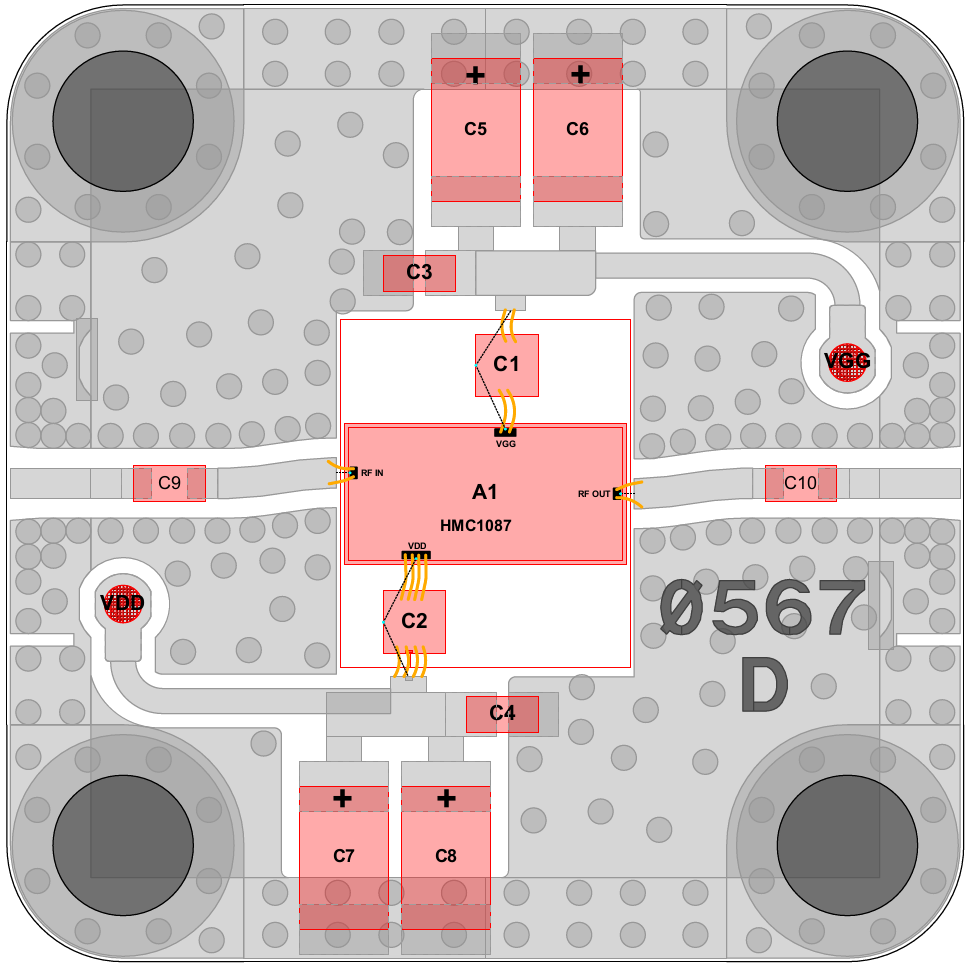

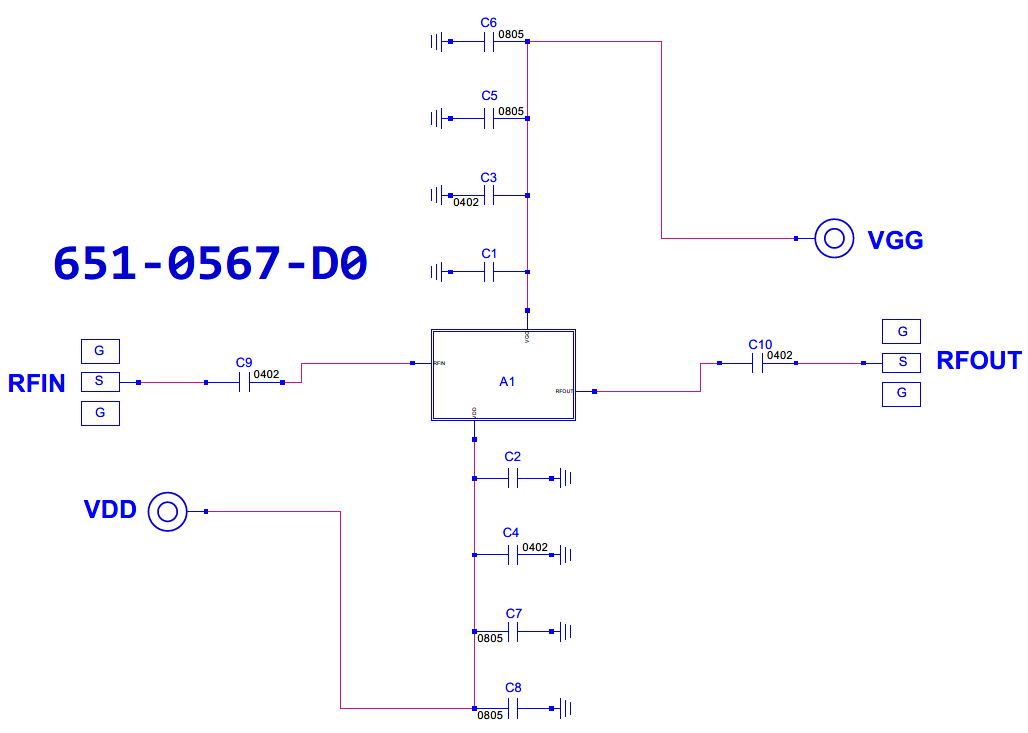

Amplifier, HMC1087-SX [PCB: 0567]
Recommended Bias Controller: XM-B9J2-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC1087-SX

Low Freq

 N/A 2000 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 11 dB

IP3

 N/A 44 dBm

Voltage

 N/A 28 V

Current

 N/A 850 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -8.0V
2. Apply VDD = +28V
3. Adjust VGG more positive until IDQ reaches 850mA
Note: -2.14V typ. Do not exceed 0.0V
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -8.0V
4. Adjust VDD to 0V
5. Adjust VGG to 0V

Part Number

 N/A XR-B1H5-0404D
