XM-B1H2-0304D
XR-B1H2-0304D ROHS

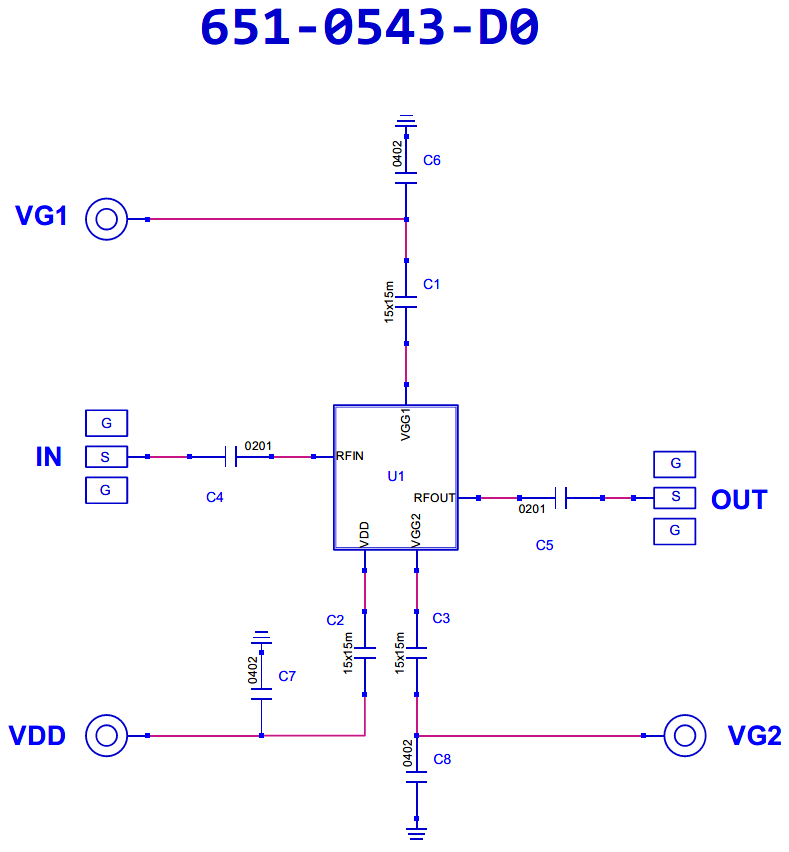

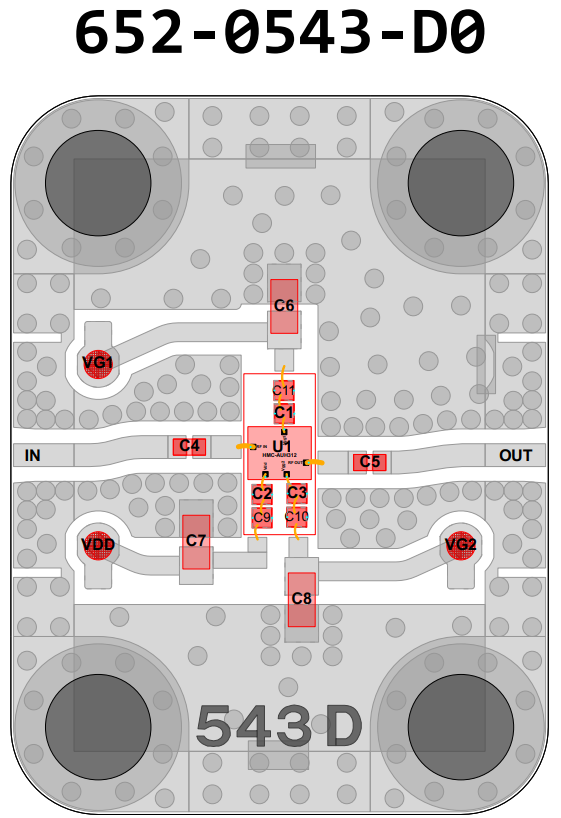

Amplifier, HMC-AUH312 [PCB: 0543]
Recommended Bias Controller: XM-C3T1-0304D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC-AUH312

Low Freq

 N/A 500 MHz

High Freq

 N/A 80000 MHz

Gain

 N/A 8 dB

NF

 N/A 5 dB

P1dB

 N/A 13.5 dBm

IP3

 N/A 23 dBm

Voltage

 N/A 8 V

Current

 N/A 60 mA

ALL_ASSET

 N/A 1130P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -2.0V
2. Apply VDD = 8.0V
3. Apply VG2 = +1.8V
4. Adjust VG1 more positive until IDQ reaches 60mA
Note: VG1 ~ -TBDV, Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -2.0V
3. Adjust VG2 to 0V
4. Adjust VDD to 0V
5. Adjust VG1 to 0V

Part Number

 N/A XR-B1H2-0304D
