XM-B1D2-0609D
XR-B1D2-0609D ROHS

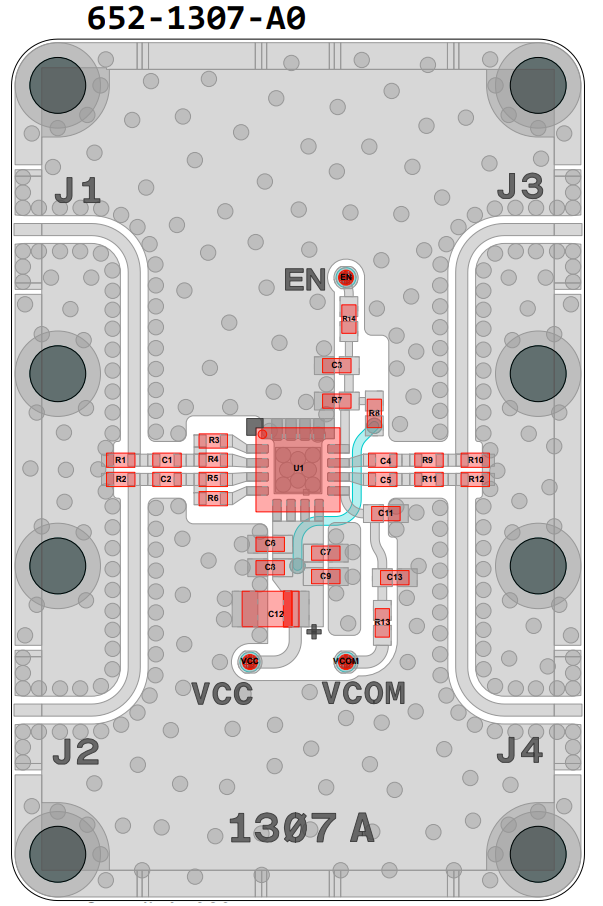

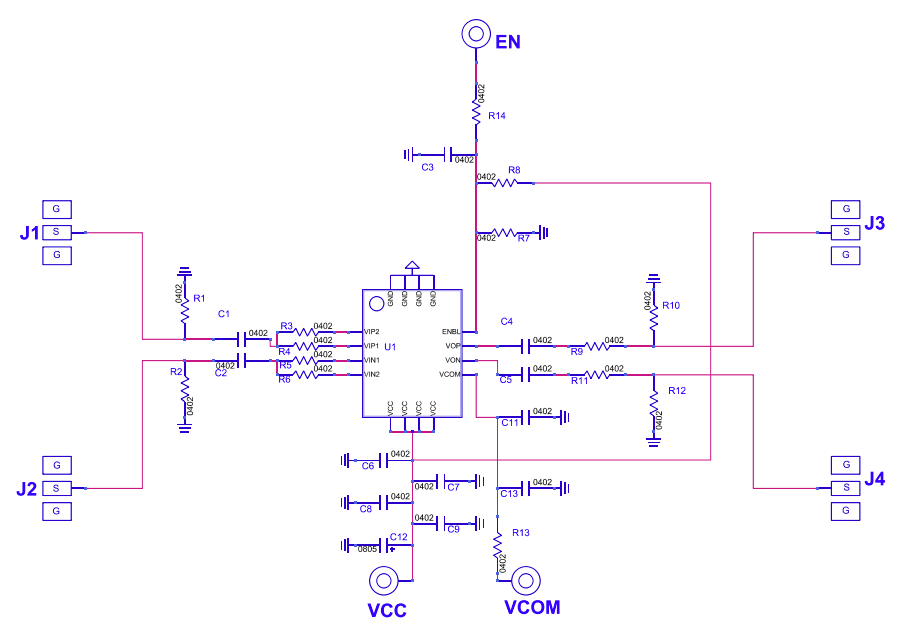

Amplifier, ADL5565ACPZ-R7 [PCB: 1307]
Recommended Bias Controller: XM-B1E3-0405D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A ADL5565ACPZ-R7

Low Freq

 N/A 50 MHz

High Freq

 N/A 6000 MHz

Gain

 N/A 15.5 dB

NF

 N/A 8.7 dB

P1dB

 N/A 16.5 dBm

IP3

 N/A 53 dBm

Voltage

 N/A 2.8 V

Current

 N/A 70 mA

ALL_ASSET

 N/A 1320P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VCC = +3.3V
2. Apply EN = +3.3V
Verify IDD ~80mA
3. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off EN
3. Turn off VCC

Part Number

 N/A XR-B1D2-0609D
