XM-B1C3-0404D
XR-B1C3-0404D ROHS

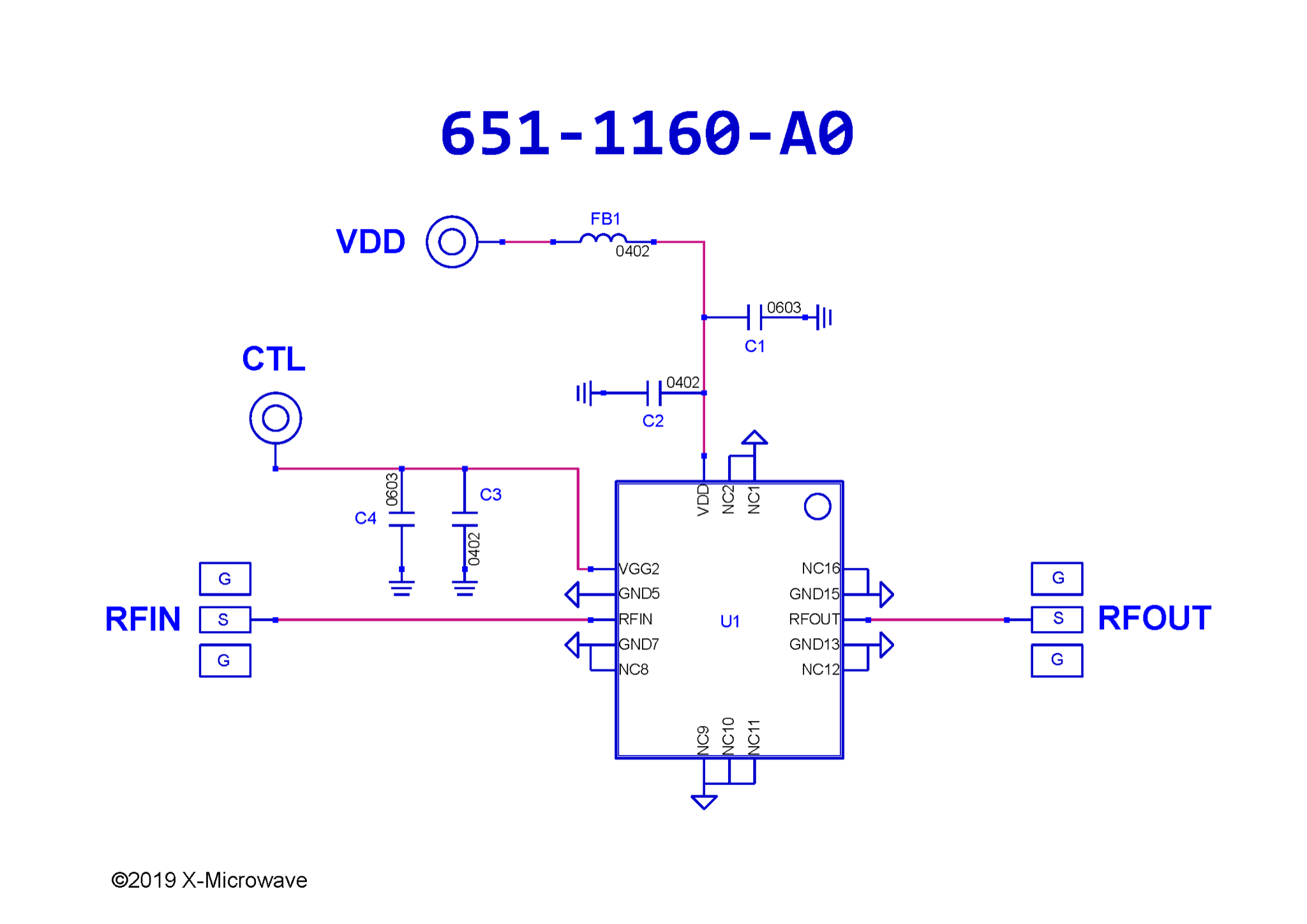

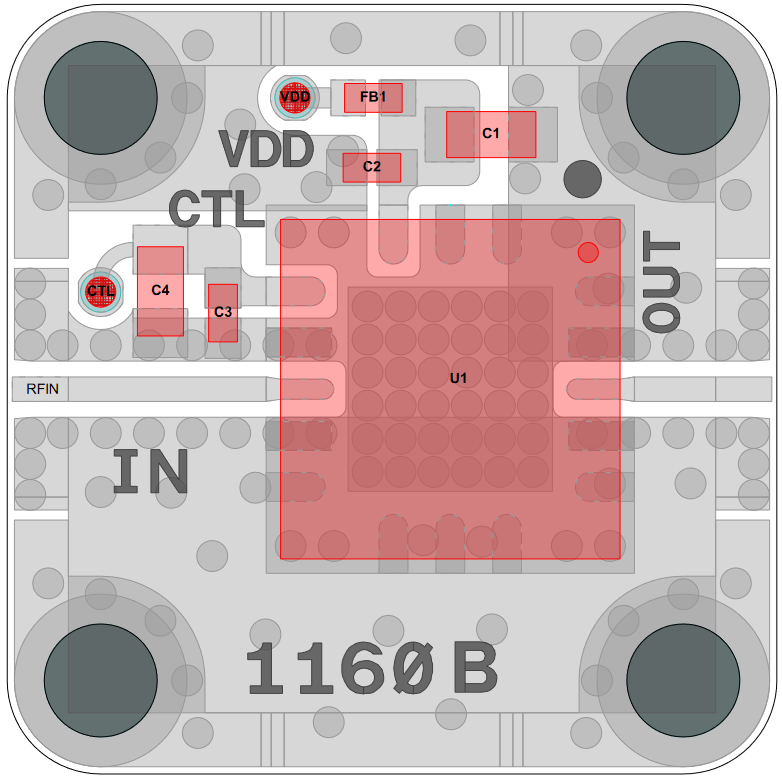

Amplifier, HMC7950LS6 [PCB: 1160]
Recommended Bias Controller: XM-B1C4-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC7950LS6

Low Freq

 N/A 2000 MHz

High Freq

 N/A 28000 MHz

Gain

 N/A 15 dB

NF

 N/A 2 dB

P1dB

 N/A 16 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 5 V

Current

 N/A 64 mA

ALL_ASSET

 N/A 1273P 1274M 1275M

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 5.0V
Verify IDD ~64mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Note: CTL = VGG2 = Open; When using VGG2, it is recommended to limit VGG2 from ?2 V to +2.6 V

Part Number

 N/A XR-B1C3-0404D
